XT60 connector Male/Female
- Product Details

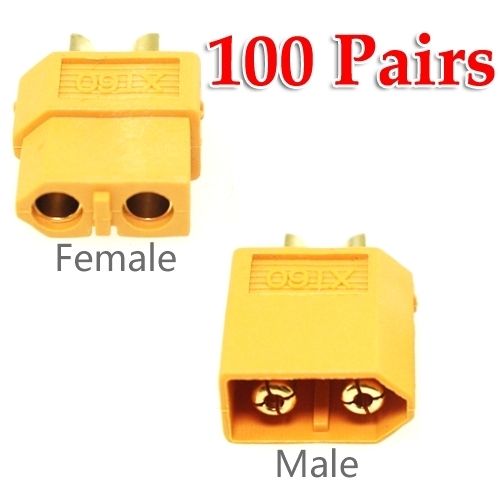

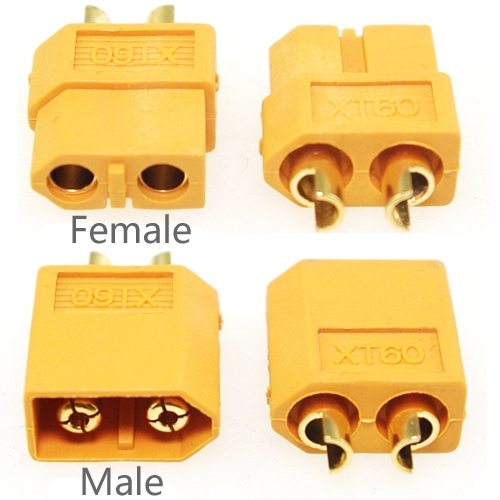

XT60 30A Lithium battery connector Male & Female
Order information:
KLS1-XT60-M-8
Type-XT60
M-Male F-Female Straight
Color 8-Yellow 3-Black

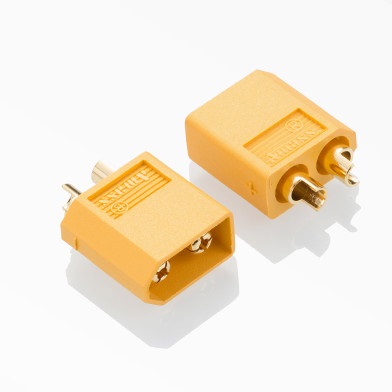

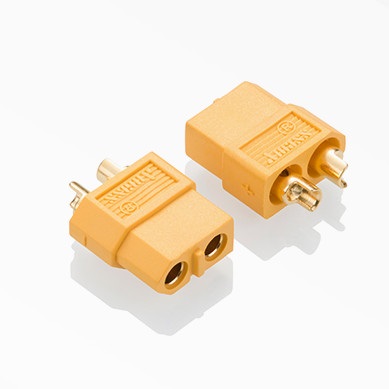

| Product model: Male: KLS1-XT60-M Female Straight：KLS1-XT60-F |
Application:Lithium battery / controller / charger |
| Product color: Yellow / Black | Metal material: Brass Gold Plated |
| Instantaneous current: 60A | Recommended wire gauge: 12 # / 14 # / 16# |
| Rated current: 30A | Insulation material: PA66 |
| Contact resistance: 0.60m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
| Withstand voltage: DC 500V | Plug times:1000 times |
| Flame retardant grade: UL94-V0 |
