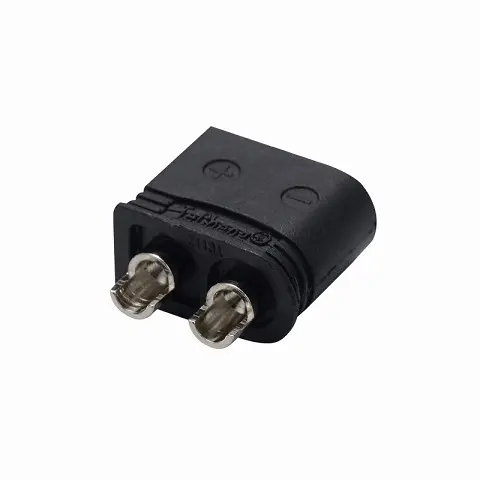

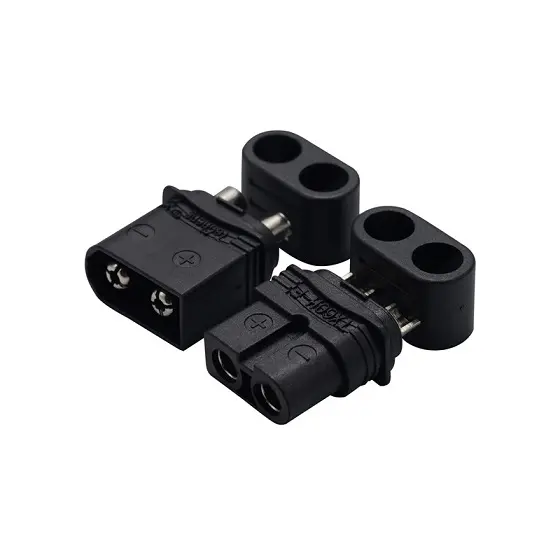

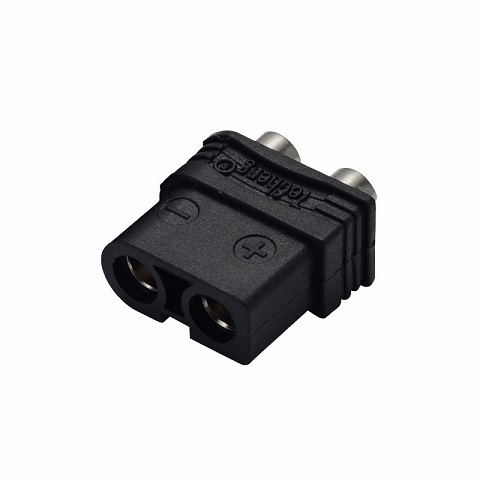

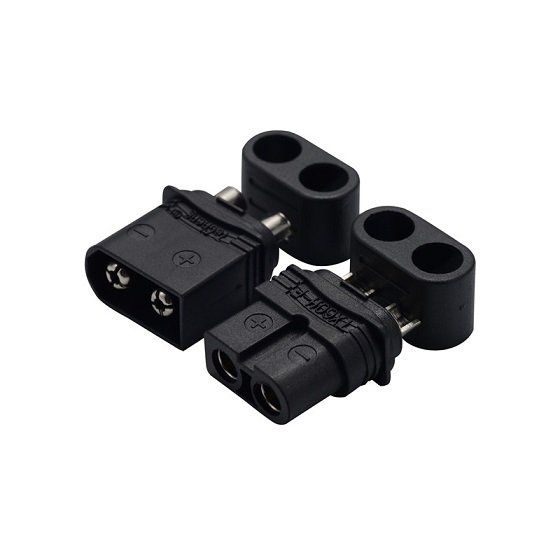

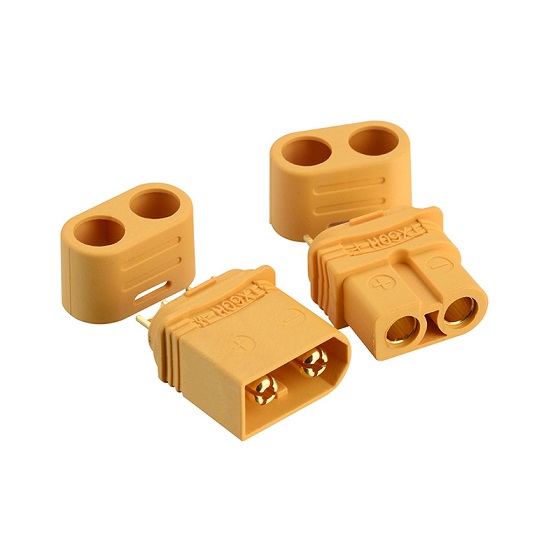

XT60 30A Lithium battery connector Male & Female
Order information:
KLS1-XT60U-M-8-N
Type-XT60U
M-Male F-Female
Color 8-Yellow 3-Black
N-Without Waterproof cover W-With Waterproof cover
Product model: Male: KLS1-XT60U-M Female: KLS1-XT60U-F |
Application:Lithium battery / controller / charger |
Product color: Yellow / Black | Metal material: Brass Gold Plated |
Instantaneous current: 60A | Recommended wire gauge: 12 # / 14 # / 16# |
Rated current: 30A | Insulation material: PA66 |
Contact resistance: 0.60m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
Withstand voltage: DC 500V | Plug times:1000 times |
Flame retardant grade: UL94-V0 |
