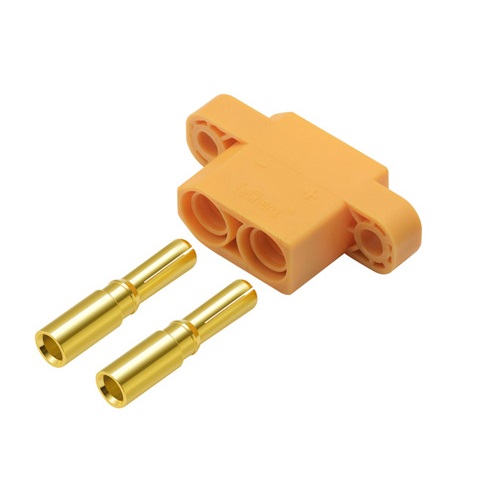

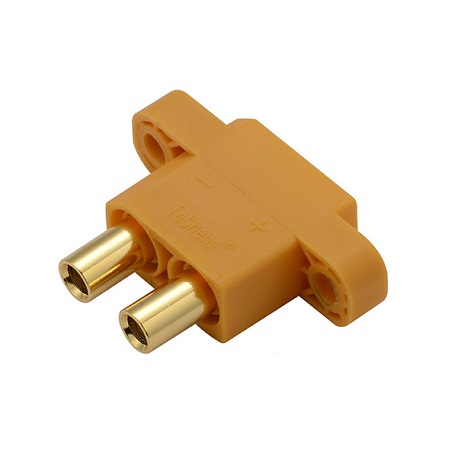

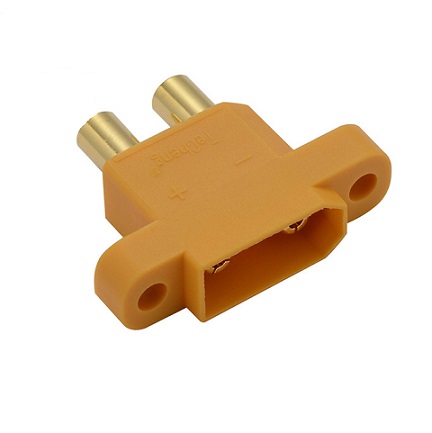

XT90 40A Lithium battery connector Female With fixing hole

  • Model: KLS1-XT90-FW
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

XT90 40A Lithium battery connector Female With fixing hole

Order information:
KLS1-XT90-FW-8
Type-XT90
FW-Female With fixing hole
Color 8-Yellow  3-Black

Product model:
Female: KLS1-XT90-FW
Application:Lithium battery / controller / charger
Product color: Yellow / Black Metal material: Brass Gold Plated
Instantaneous current: 90A Recommended wire gauge: 8 # / 10 # / 12#
Rated current: 40A  Insulation material: PA66
Contact resistance: 0.40m Ω Operating temperature: – 20 ℃ to 120 ℃
Withstand voltage: DC 500V Plug times:1000 times
Flame retardant grade: UL94-V0
