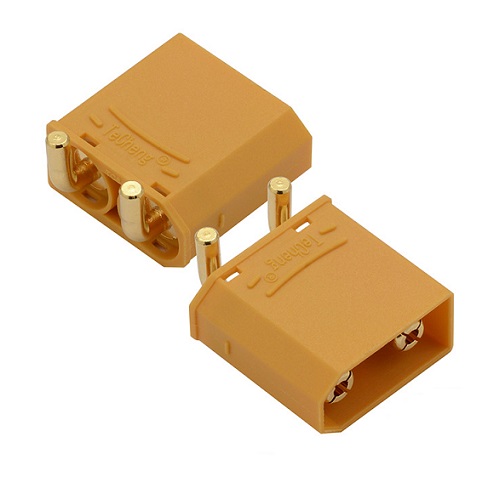

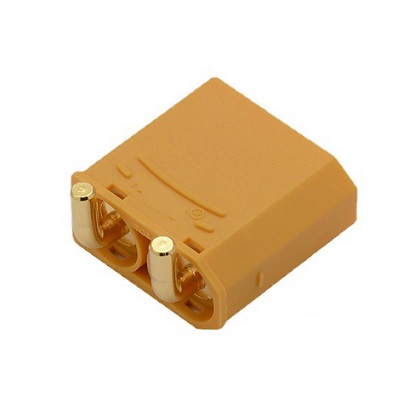

XT90 40A Lithium battery connector Female Right Angle
Order information:
KLS1-XT90-FR-8
Type-XT90
FR-Female Right Angle
Color 8-Yellow 3-Black
Product model: Female: KLS1-XT90-FR |
Application:Lithium battery / controller / charger |
Product color: Yellow / Black | Metal material: Brass Gold Plated |
Instantaneous current: 90A | Recommended wire gauge: 8 # / 10 # / 12# |
Rated current: 40A | Insulation material: PA66 |
Contact resistance: 0.40m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
Withstand voltage: DC 500V | Plug times:1000 times |
Flame retardant grade: UL94-V0 |
