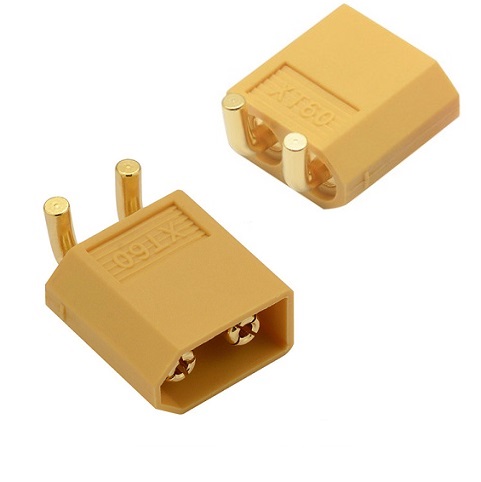

XT60 30A Lithium battery connector Female Right Angle

  • Model: KLS1-XT60-FR
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

XT60 30A Lithium battery connector Female Right Angle

Order information:
KLS1-XT60-FR-8
Type-XT60
FR-Female Right Angle
Color 8-Yellow  3-Black

Product model:
Female Right Angle:KLS1-XT60-FR
Application:Lithium battery / controller / charger
Product color: Yellow / Black Metal material: Brass Gold Plated
Instantaneous current: 60A Recommended wire gauge: 12 # / 14 # / 16#
Rated current: 30A Insulation material: PA66
Contact resistance: 0.60m Ω Operating temperature: – 20 ℃ to 120 ℃
Withstand voltage: DC 500V Plug times:1000 times
Flame retardant grade: UL94-V0
