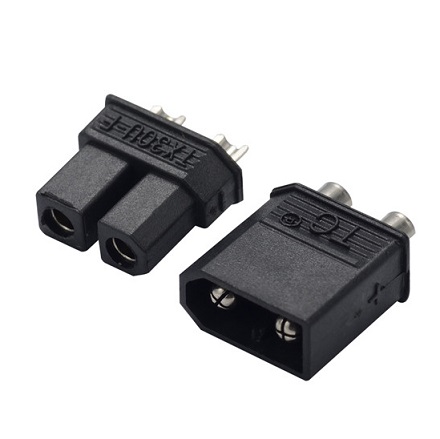

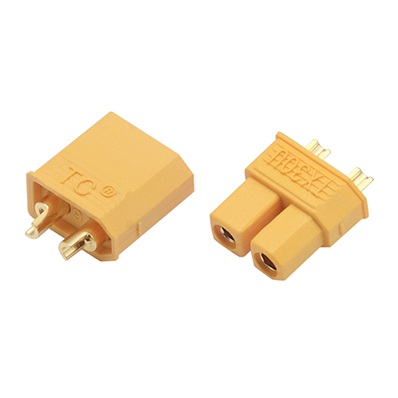

XT30 15A Controller charger connector Male & Female
Order information:
KLS1-XT30-M-8
Type-XT30
M-Male F-Female
Color 8-Yellow 3-Black
Product model: Male: KLS1-XT30-M Female: KLS1-XT30-F |
Application:Lithium battery / controller / charger |
Product color: Yellow / Black | Metal material: Brass Gold Plated |
Instantaneous current: 30A | Recommended wire gauge: 16 # / 18 # / 20# |
Rated current: 15A | Insulation material: PA66 |
Contact resistance: 1.20m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
Withstand voltage: DC 500V | Plug times:1000 times |
Flame retardant grade: UL94-V0 |
