XLR Socket Connector

Model: KLS1-XLR-S09
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

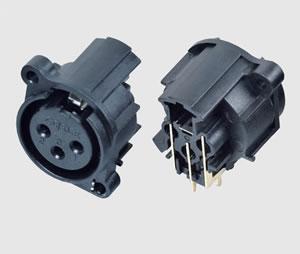

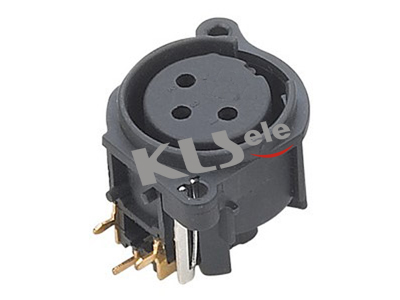

XLR Socket Connector

Electrical Specification:
Contact resistance: ≤ 0.03Ω
Insulation resistance: ≥ 100mΩ
Withstand voltage: 500V AC (50Hz)/minute
Rated load: 50V DC, 1A
Insertion and extraction force: 4-40N
Temperature range: -30° C to + 80° C

PDF

KLS1-XLR-S09.pdf
