XLR Plug Connector

  • Model: KLS1-XLR-P03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

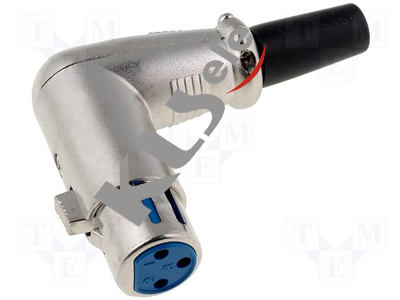

XLR Plug Connector-Right

Electrical Specification:
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm – 8.0 mm
Temperature Range: -30° C to + 80° C
