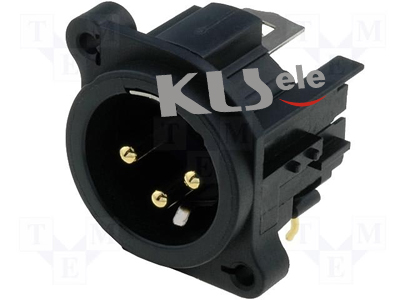

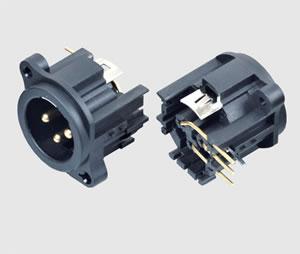

XLR Panel Socket

  • Model: KLS1-XLR-S10
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

XLR Panel Socket

Electrical Specification:
Contact resistance: ≤ 0.03Ω
Insulation resistance: ≥ 100mΩ
Withstand voltage: 500V AC (50Hz)/minute
Rated load: 50V DC, 1A
Insertion and extraction force: 4-40N
Temperature range: -30°C~+80°C
