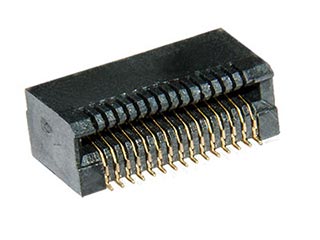

XFP 30Pos SMD Connector

  • Model: KLS12-XFP-01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Features :
Capable of 10Gbps data signal speeds 15 or 30-microinch gold plating.
High-speed contact design.
SMT design in tape reel or tray packaging.
Advanced stamping technology for smooth contact surface.

Material :
Insulators: Polyester Thermoplastics Glass Fibre Filled, UL 94V-0
Contact: Copper Alloy With Au Plated.

Electrical :
Contact Resistance: △R10 milliohms Max. for signal contacts
Insulation Resistance: 1000MΩ Min. Current Rating: 0.5 Amps Max. per contact

Mechanical :
Transceiver Insertion Force: 40N Max.
Transceiver Extraction Force: 30N Max.
Durability: 100 Cycles Min.
Operating Temperature Range: -20°C ~+85°C
