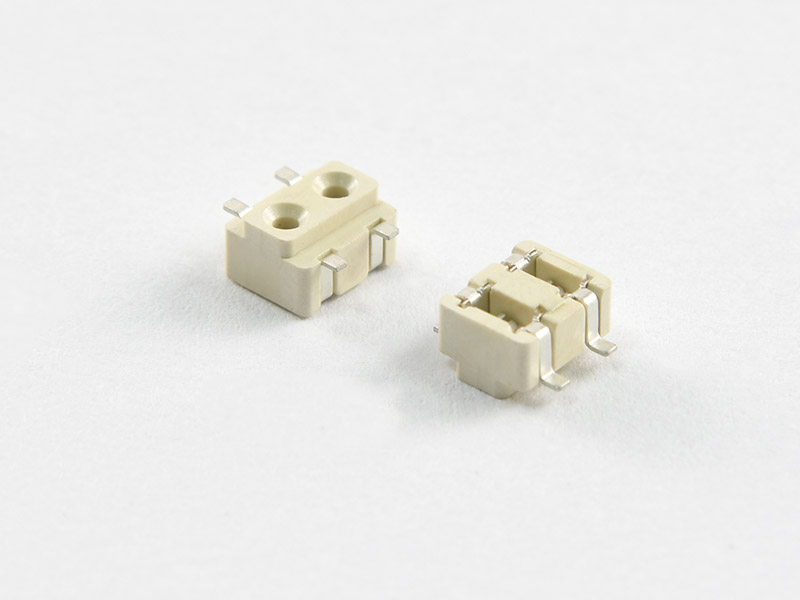

Wire to Board Link,Socket for LED Lighting,Pitch 3.5mm
- Product Details
MATERIAL
Insulator:LCP,UL94V-0,WHITE
Contacts:Phosphor Bronze,Tin-plated
Main Specifications
Contact Resistance:≤30mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:250V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -40 ° C ~ + 120° C
