Wire Splice Connectors,For 4mm²,01 pins

  • Model: KLS2-L01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information:
KLS2-L01-0-O

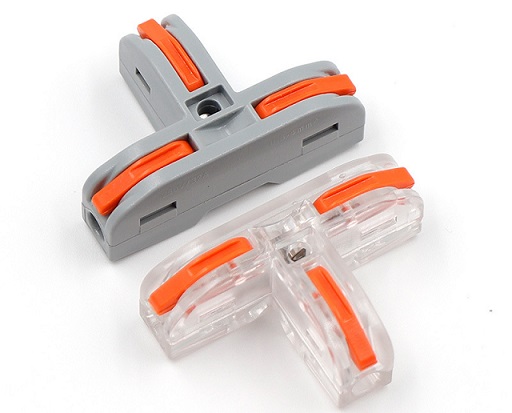

0-Gray shell    1-Transparent shell

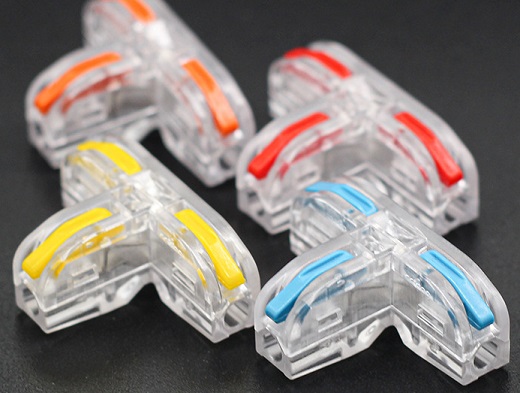

O-Orange press handle   L-Blue press handle   Y-Yellow press handle   R-Red press handle

Electrical data
Rated voltage (II / 2) 250V / 600V
Rated impulse voltage (II / 2) 4 kV
Rated current 32 A
Legend (ratings) (II / 2)
Overvoltage category II
Pollution degree 2
Connection data
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross section 2.5 mm²
Solid conductor 0.08   ~ 2.5 mm² / 28 ~ 12 AWG
Stranded conductor 0.08   ~ 2.5 mm² / 28 ~ 12 AWG
Fine-stranded conductor 0.08   ~ 4.0 mm² / 28 ~ 12 AWG
Strip length 9~10 mm / 0.35~0.39 Inch
Total number of connection points 2,3,5
Total number of potentials 1
Type of wiring Side-entry wiring
Material Data
Color Gray And Transparent color
Flammability class per UL94 V2
