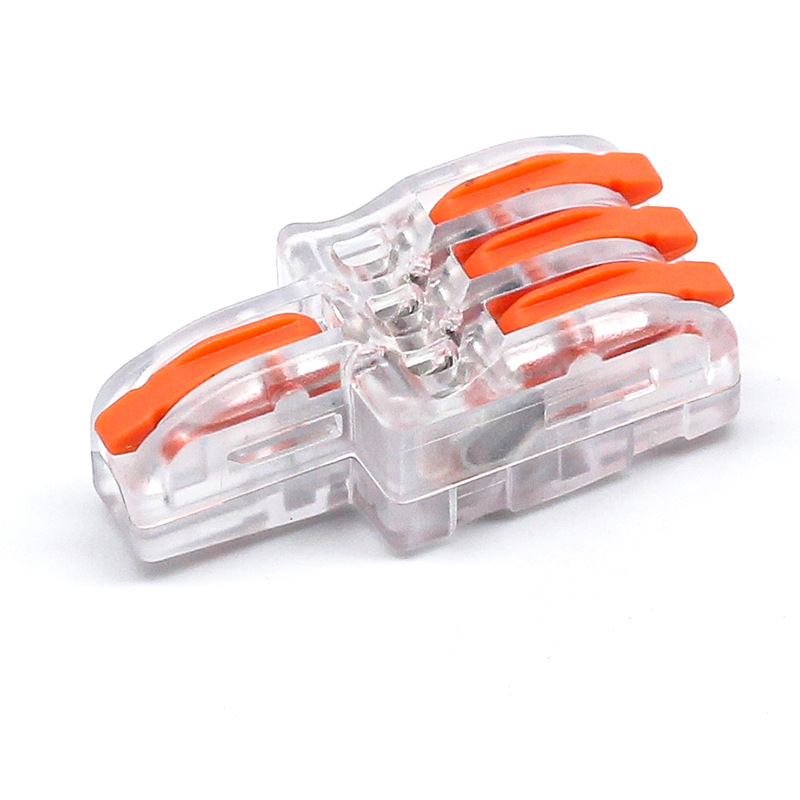

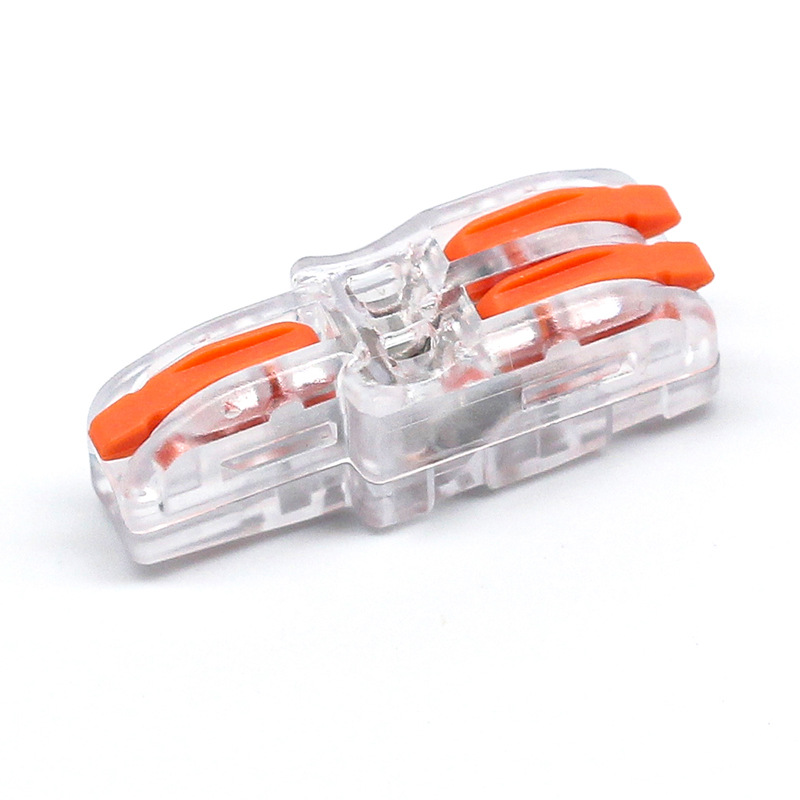

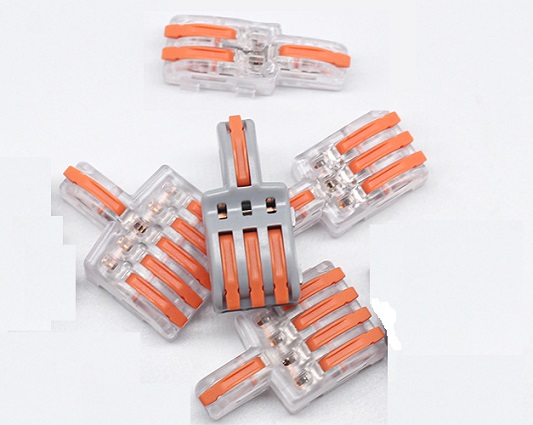

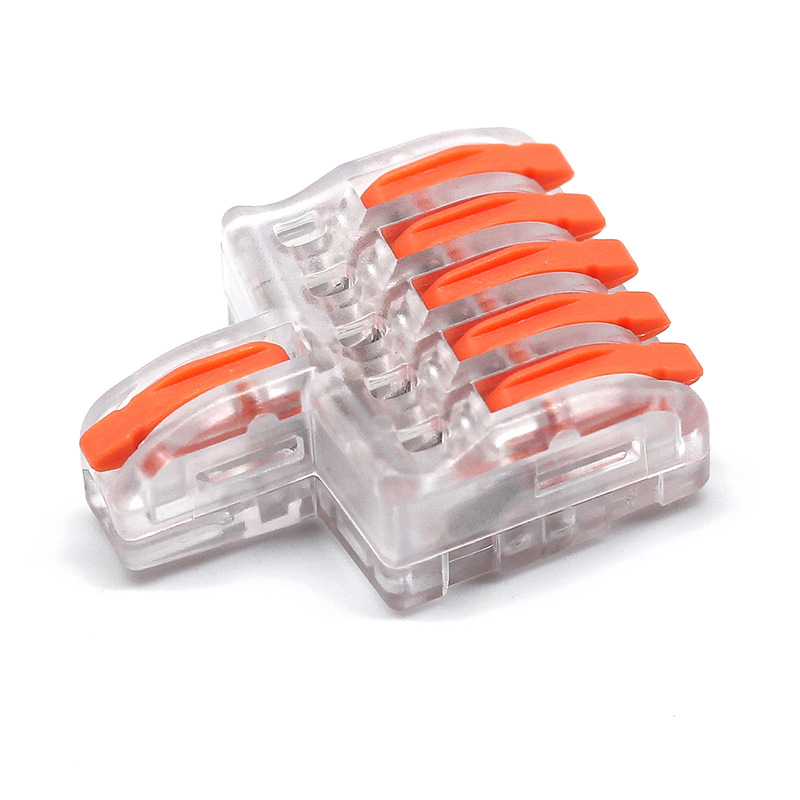

Wire Splice Connectors,For 4mm²,01 in 02 03 04 05 out

Order information:
KLS2-L04-F-12AB

Electrical data
Rated voltage (II / 2)	250V / 600V
Rated impulse voltage (II / 2)	4 kV
Rated current	32 A
Legend (ratings)	(II / 2)
Overvoltage category	II
Pollution degree	2
Connection data
Connection technology	CAGE CLAMP®
Actuation type	Lever
Connectable conductor materials	Copper
Nominal cross section	2.5 mm²
Solid conductor	0.08 ~ 2.5 mm² / 28 ~ 12 AWG
Stranded conductor	0.08 ~ 2.5 mm² / 28 ~ 12 AWG
Fine-stranded conductor	0.08 ~ 4.0 mm² / 28 ~ 12 AWG
Strip length	9~10 mm / 0.35~0.39 Inch

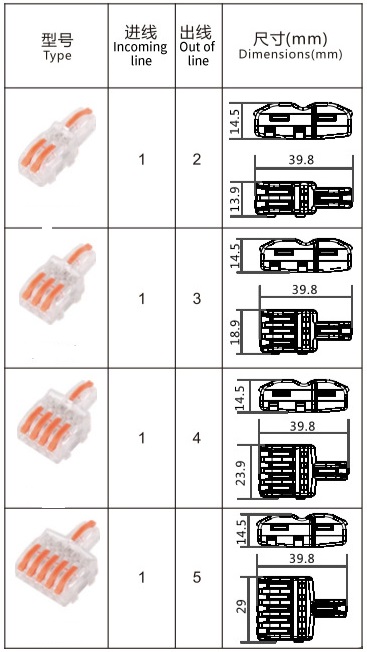

Total number of connection points	2,3,5
Total number of potentials	1
Type of wiring	Side-entry wiring

Material Data
Color	Transparent color
Flammability class per UL94	V2
