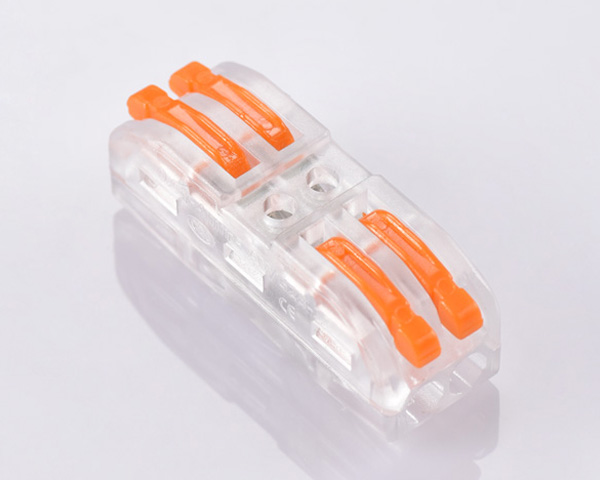

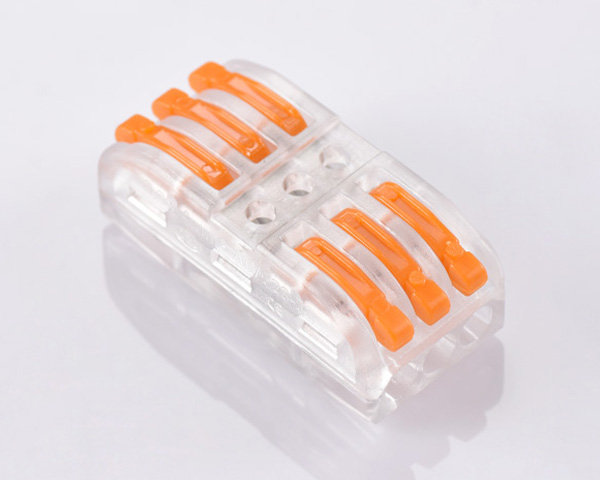

Wire Splice Connectors,For 4mm²,01 02 03 Pins
- Product Details
Wire Splice Connectors,For 4mm²,01 02 03 Pins
Order information:
KLS2-282-XXP-1-1
XXP-No.of 01,02,03 pins
1-Transparent shell

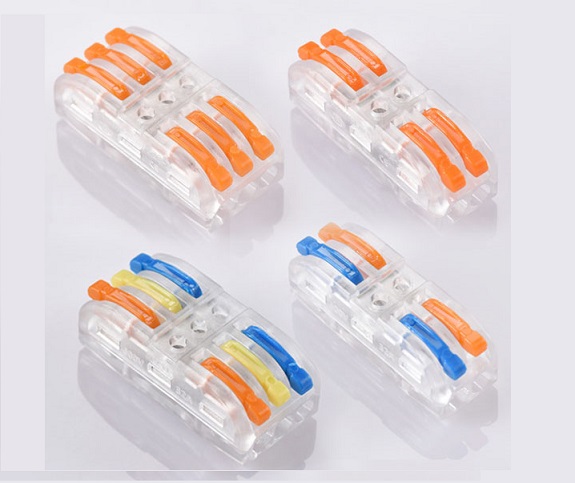

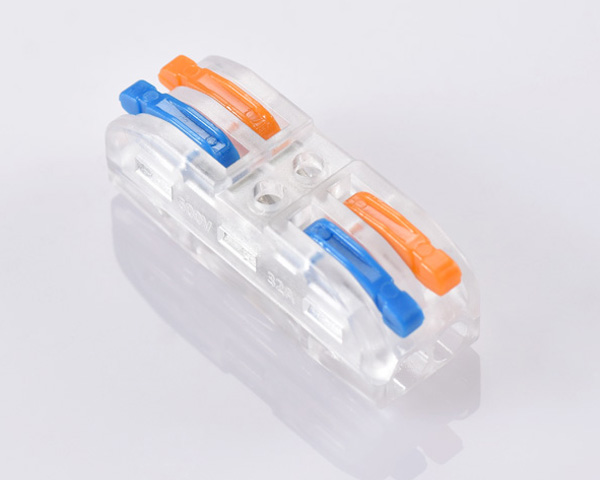

0-Orange press handle 1-Color press handle
| Electrical data | |
| Rated voltage (II / 2) | 250V / 600V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 32 A |
| Legend (ratings) | (II / 2) |
| Overvoltage category | II |
| Pollution degree | 2 |
| Connection data | |
| Connection technology | CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Nominal cross section | 2.5 mm² |
| Solid conductor | 0.08 ~ 2.5 mm² / 28 ~ 12 AWG |
| Stranded conductor | 0.08 ~ 2.5 mm² / 28 ~ 12 AWG |
| Fine-stranded conductor | 0.08 ~ 4.0 mm² / 28 ~ 12 AWG |
| Strip length | 9~10 mm / 0.35~0.39 Inch |
| Type of wiring | Side-entry wiring |
| Material Data | |
| Color | Gray |
| Flammability class per UL94 | V2 |
