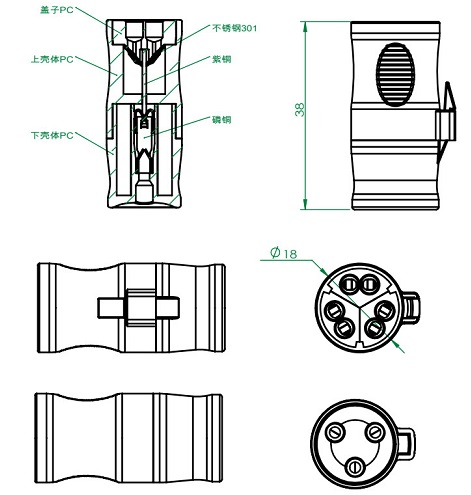

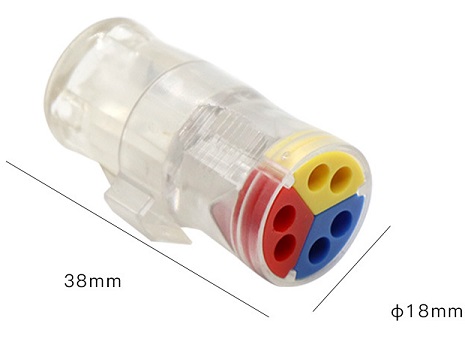

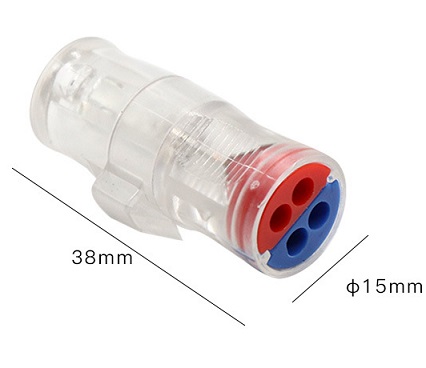

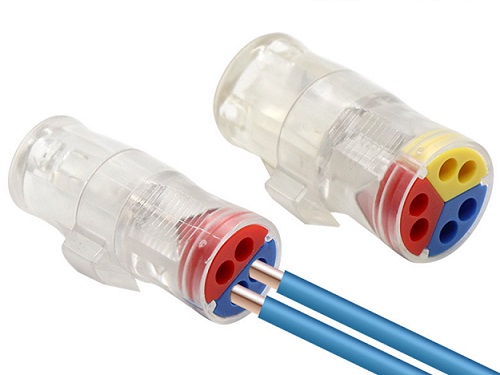

Wire Splice Connectors,For 2.5mm²,Two in four out And three in six out

  • Model: KLS2-L02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Wire Splice Connectors
Applicable wires  : 28-12AWG
Temperature range : -25~95
Voltage rating : 450V
Current rating : 24A
Contact resistance: ≤0.015Ω
Insulation resistance : ≥1000MΩ

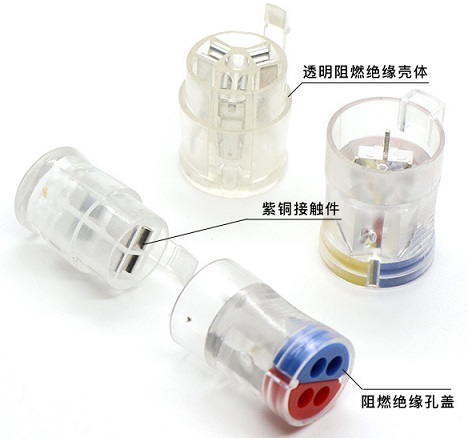

Material :
Housing : PA66/PCUL94V-2(0)
Contact : Copper, Tin plated
Spring:SUS 301
