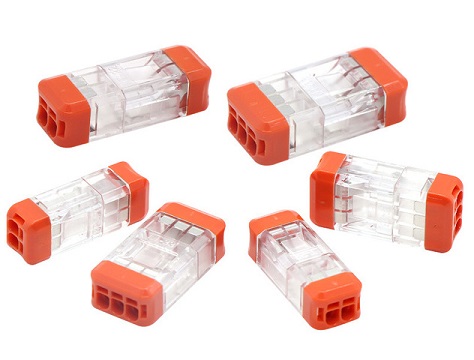

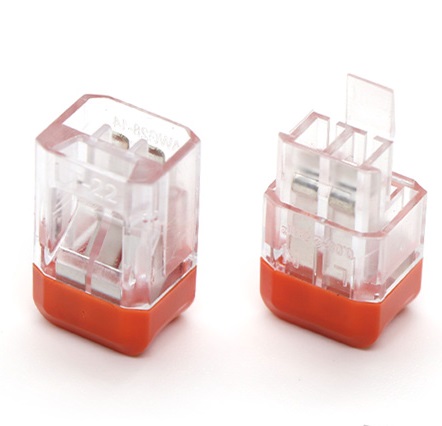

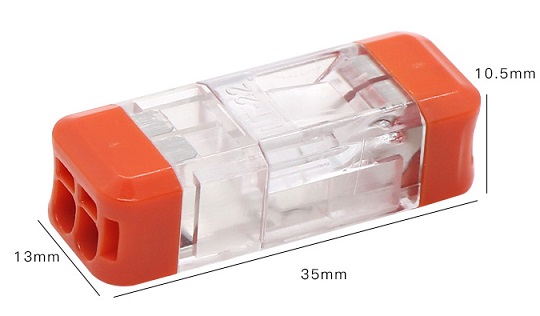

Wire Splice Connectors
Applicable wires  : 28-12AWG
Temperature range : -25~95
Voltage rating : 450V
Current rating : 24A
Contact resistance: ≤0.015Ω
Insulation resistance : ≥1000MΩ

Ｍaterial :
Housing : PA66/PCUL94V-2(0)
Contact : Copper, Tin plated
Spring：SUS 301

KLS2-L03.pdf
