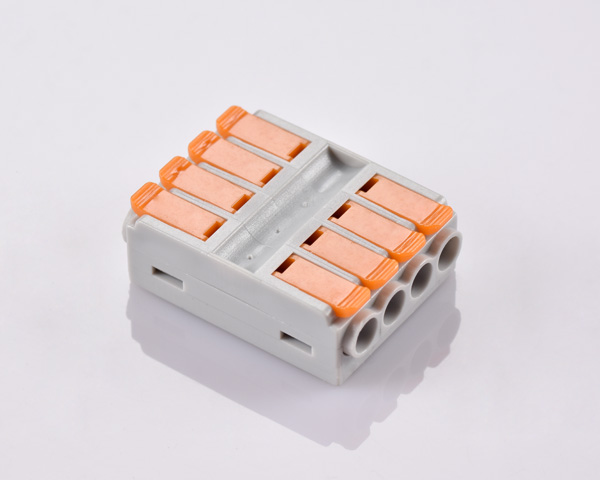

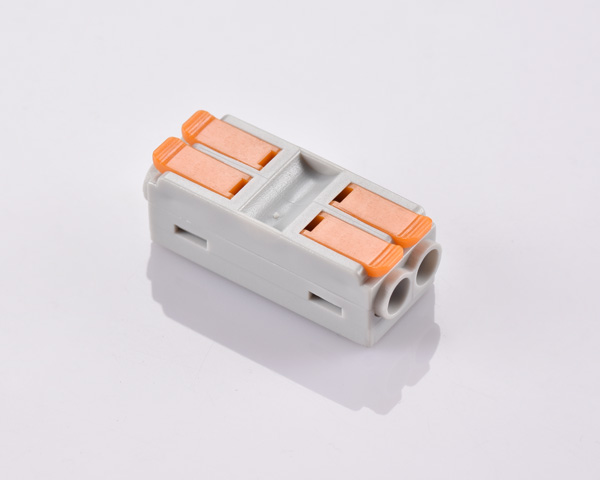

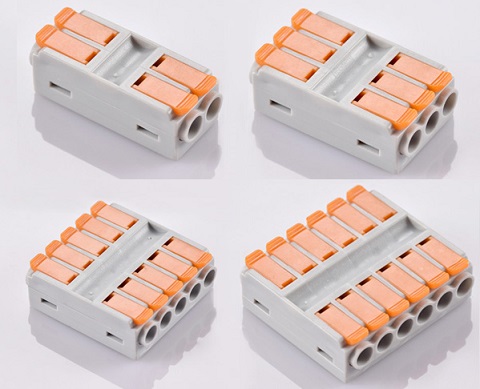

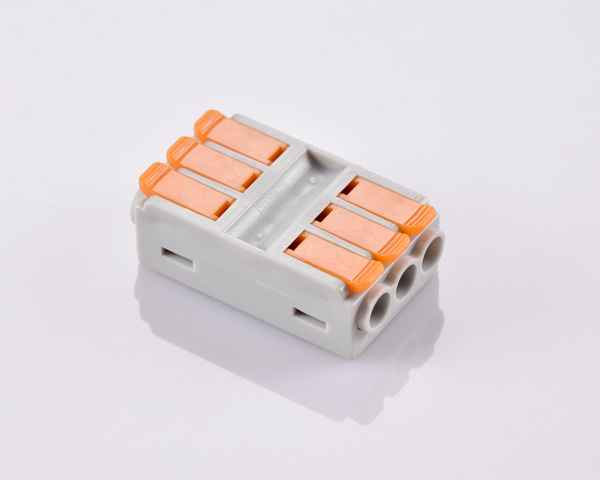

Wire Splice Connectors,6mm²,20~10AWG,02 03 04 05 06 08 10 12 Pins

  • Model: KLS2-226B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Wire Splice Connectors,6mm²,20~10AWG,02 03 04 05 06 08 10 12 Pins

Order information:
KLS2-226B-XXP
XXP-No.of 02,03,04,05,06,08,1012 pins

Wire Splice Connectors
Applicable wires  : 20-10AWG,0.08mm²~6.0 mm²

Temperature range : -25~95
Voltage rating : 450V/600V
Current rating : 41A
Contact resistance: ≤0.015Ω
Insulation resistance : ≥1000MΩ
Material :
Housing : PA66/PCUL94V-2(0)
Contact : Copper, Tin plated
Spring:SUS 301
