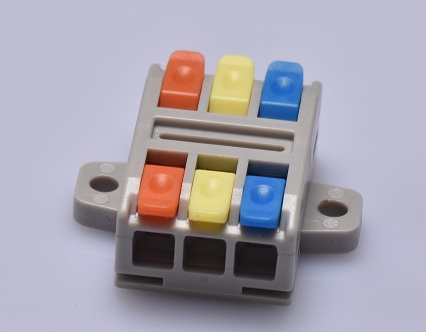

Wire Splice Connectors With fixing hole,28~13AWG,02,03pins
- Product Details
Wire Splice Connectors With fixing hole,02,03 pins
Order information:
KLS2-L240-XX-D
XX-No.of 02,03 pins
D-Color press handle E-Orange press handle
Material:
Housing:PA66/PC,UL94V-0(2)
Contact:Brass,Tin plated
Spring clasp:301 Imported stainless steel
Applicable wires:13~28AWG
Electrical Characteristics:
Current rating:32A
Voltage rating:300V
Temperature range:-25°C~+ 95°C
Insulator Resistance:1000MΩ Min
Contact Resistance:0.015mΩ Max
Dimensional Be Smaller 5 Tolerance ±0.05mm
