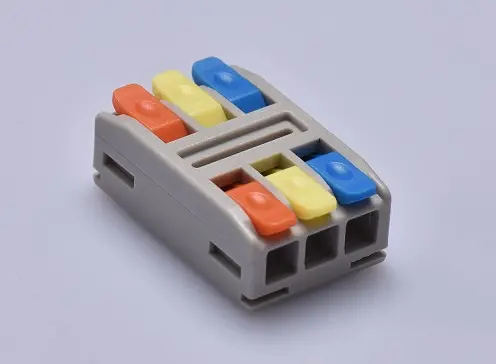

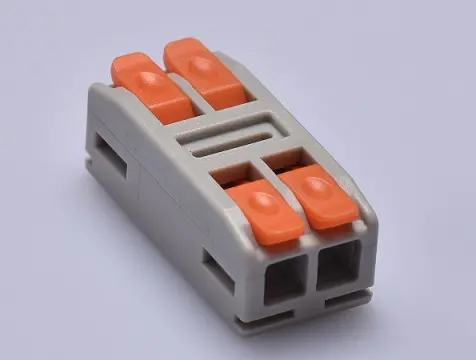

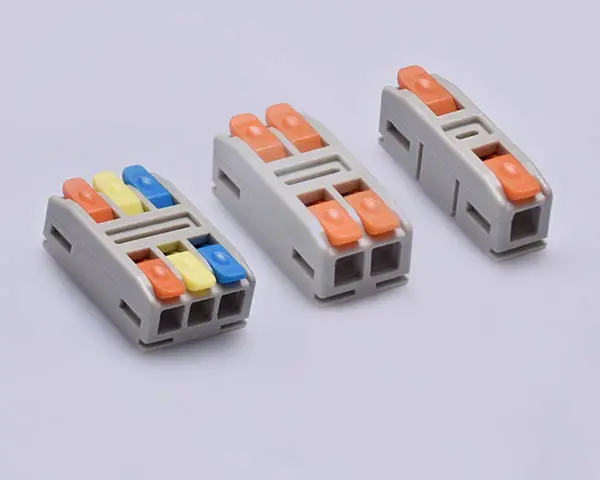

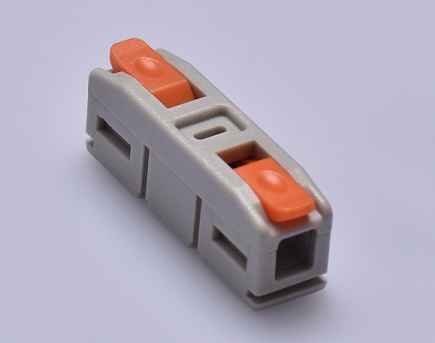

Wire Splice Connectors 13~28AWG, 01 02 03 pins
- Product Details
Wire Splice Connectors,01,02,03 pins
Order information:
KLS2-L239-XX-E
XX-No.of 01,02,03 pins
D-Color press handle (02 and 03pins) E-Orange press handle
Material:
Housing:PA66/PC,UL94V-0(2)
Contact:Brass,Tin plated
Spring clasp:301 Imported stainless steel
Applicable wires:13~28AWG
Electrical Characteristics:
Current rating:32A
Voltage rating:300V
Temperature range:-25°C~+ 95°C
Insulator Resistance:1000MΩ Min
Contact Resistance:0.015mΩ Max
Dimensional Be Smaller 5 Tolerance ±0.05mm
