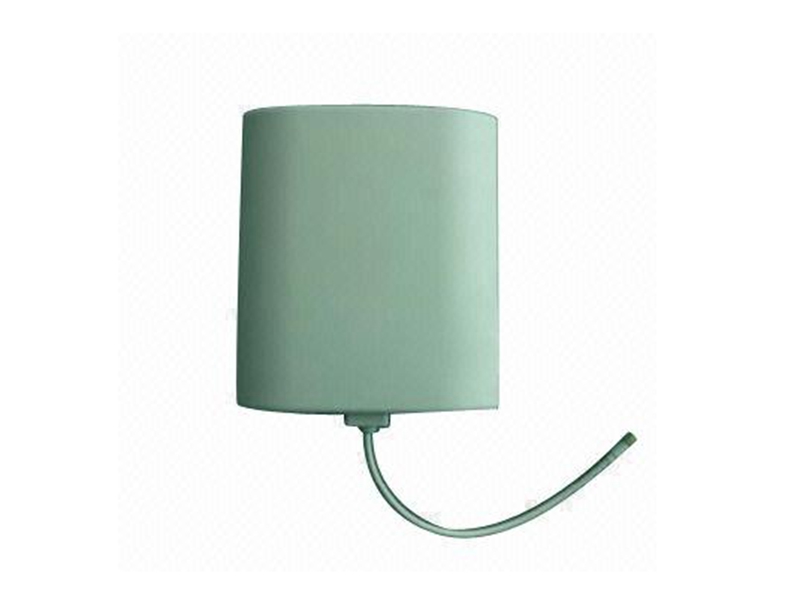

WIFI 2.4G Panel Antenna 225x195x47mm

  • Model: KLS1-WIFI-P1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Panel Antenna is a kind of only in a specific propagation direction antenna.
Flat plate antenna is generally used in point to point under the circumstances

Frequency range: 2400 ~ 2483MHz
Bandwidth: 83MHz
Gain: 14dBi
Beam width:    H: 65     V: 25
VSWR: ≤1.5
Input impedance: 50Ω
Polarization: vertical
Maximum power: 100W
Lightning protection: DC ground
Connector model: SMA Male
Working temperature: -40 to 60°C
Rated wind velocity: 60m/s
Random color: white
Mounting way: hold in pole

Size: 225x195x47mm

Antenna weight: 0.45kg
