Order Information
KLS1-WIFI05   0   1   0     2000

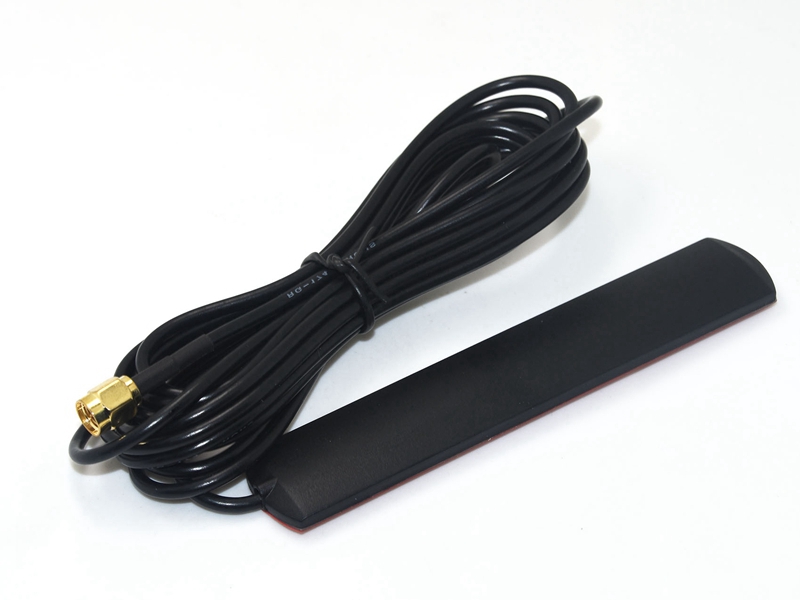

WIFI05 :Wifi 2.4G Antenna Series
Con.    0: Standard Connector
1: RP Connector
1:  SMA  connector
0: straight    1:Right angle
2000:  Cable Lenges

Specification:
Frequency : 2400~2500MHz
Gain : 3dBi
Vswr : 1.5 Max.
Impedance : 50 Ω
Polarization : Vertical
Radiation : OMNIDIRECTIONAL
Max power : 50W
Shell material :  PVC
Hight: 5.0±1.0MM
Connector : SMA Pin or SMA Jack
Cable: RG174, Black
Length:3000mm or Other
Lightning protection: DC Grounding
Operating Temperature : -30°C to +70°C

KLS1-WIFI05.pdf
