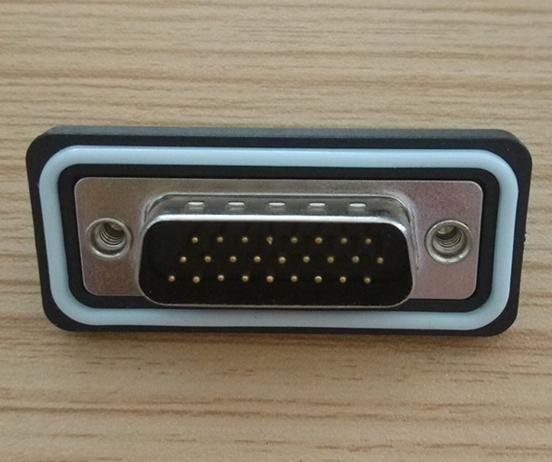

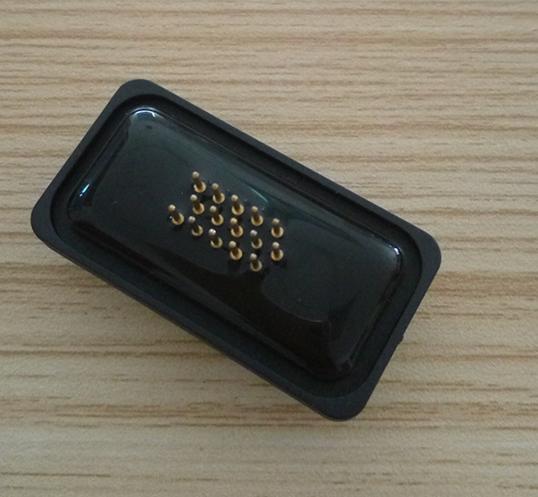

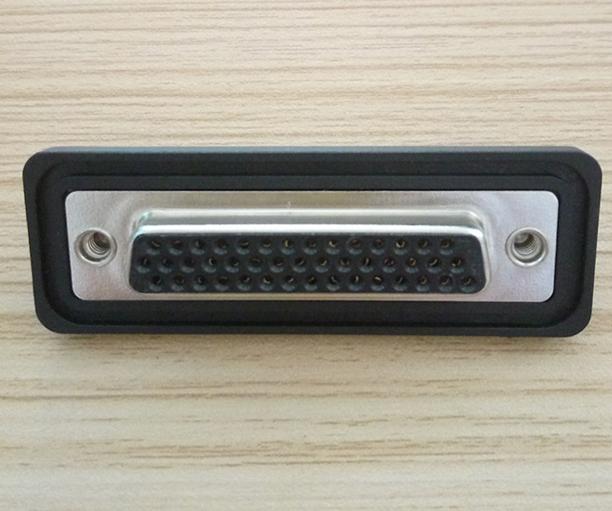

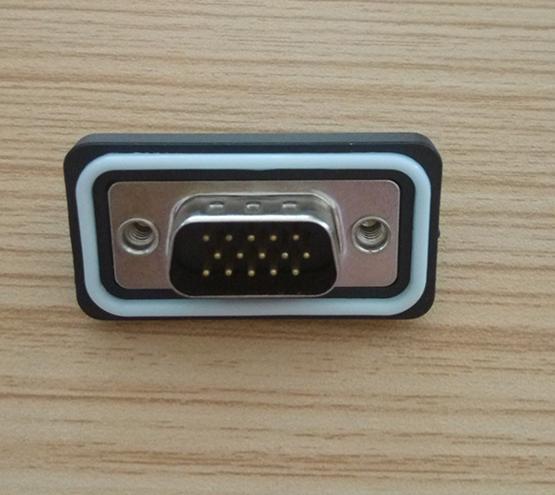

waterproof D-sub ( HDP 3 Row PCB Type)

Order Information
KLS1-124-XX-M-B-W
XX-No.of 15~44pin
M-Male    F-Female
L-Blue    B-Black  W-White
W- With post  N-Without post

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass or Phosphor Bronze
Shell: Steel, 100u” Tin Over 50u” min Nickel
Clinch Nut: Brass, 100u” min Nickel Plated
Screwlock: Brass, 100u” min Nickel Plated
Electrical Characteristics:
Current Rating: 3 AMP or 5AMP
Insulator Resistance: 5000M ohms min. at DC 500V
Contact Resistance: 20m ohms max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
