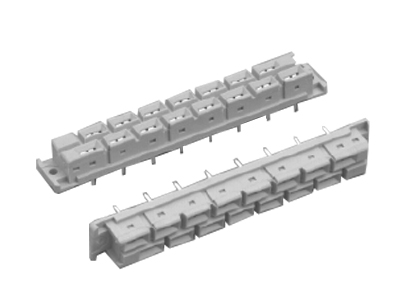

Vertical Female Type H15 Connectors
- Product Details
Parameter:
Housing:PBT & 30%Glass Fiber(UL94V-0)
Contact:Female:Phosphor Bronze
Plating:Ag/Ni plated
Operating temperature:-55℃~+105℃
Contact resistance:8m(ohm)max.
Insulator resustance:10ºM(ohm)min.
Current rating:15 AMP
Withstanding voltage:AC 3100V for 1 minute
Insertion force: 90N max
Withdrawal force: 0.2N/pin min
