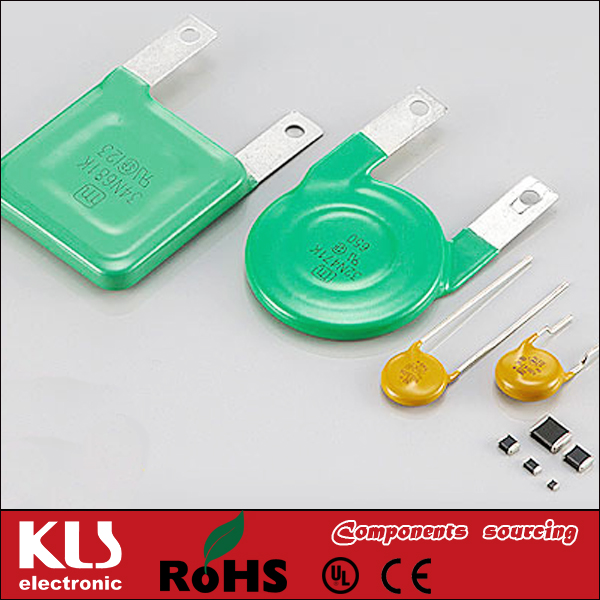

Varistor Leaded

1.Applications:
transistor,diode,IC,thyristor and trial,semi conductor switeh elecment and kinds of electronic equipuent protection
Surge absoption in house-hold appliance,industrial electronies,relay and electro magnetic valva.
Electrostaitc discharge noise spike suppression
Leakage-protection switch over-voltage protection
Thunderbolt and over-voltage protection on such telecommunication apparatus as telephone,miles-control exchanger at so on.

2.Features and technological characteristics：
small figure,large capacitarce and energy
Security working,operating easilyethoxyline resin-envenloped
response time：<25ns
using ambiend temperature：-40℃～+85℃
using ambiend temperature：≥500MΩ
insulation resistance：-0.5％/℃
temperature coefficience of varistor voltage:-0.5%/℃
chip diameter:：5、7、10、14、20、25、32、40mm
allowable tolerance of varistor voltage：K±10％

3.Specificatio:

4.Dimensions：(mm)
