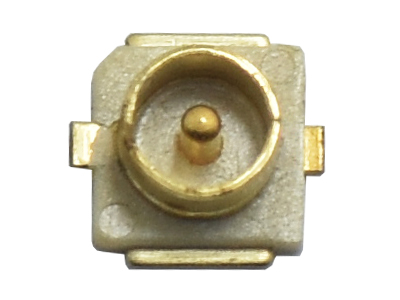

USS RF Connector I-PEX I 2.6×2.6×1.25mm
- Product Details
Notes.
1.Material:
(1)Housing:LCP,UL94V-0,white
(2)Contact:Brass,Au 0.1μm MIN.over NI 1.27 MIN.
(3)Ground contact:Phosphor bronze,Au 0.05μm MIN.over NI 1.27 MIN.
2.Coplanarity:0.1mm MAX.
3.Packing:Emboss tape.
4.Mating partner part no:20278-***R-**;20311-**1R-08
5.This is”Pb-free”connector
6.RoHS compliant
