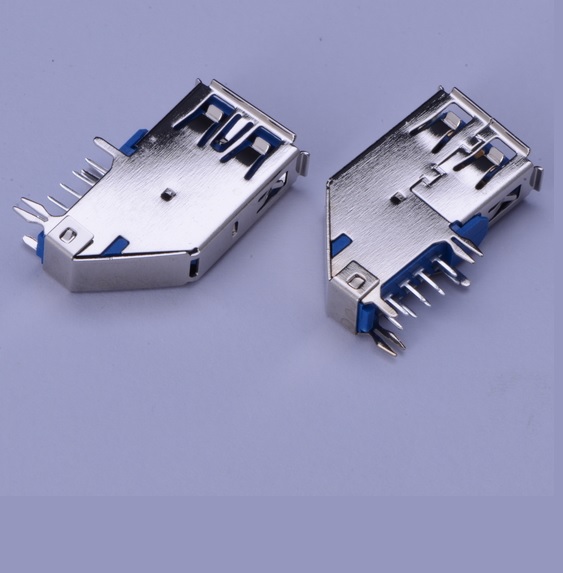

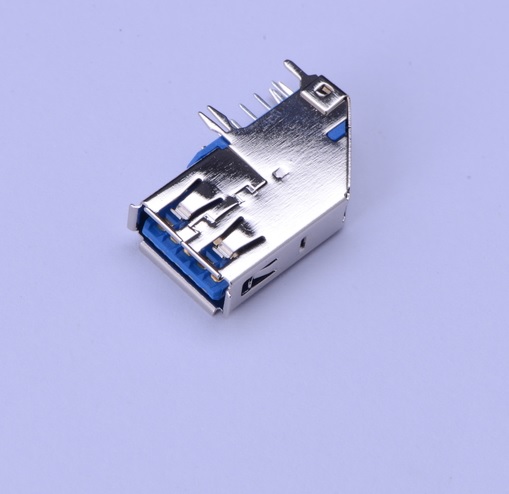

Upright dip 90 A Female 9P USB 3.0 Connectors

  • Model: KLS1-317
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical
Current Rating: 1 8A for pin 1 & pin 4
                          0.25A other contacts
Contact Resistance: 30m Ohm Max. for pin
                                  1 & pin 4 50m Ohm Max.
                                   for other contacts
Insulator Resistance: 100M Ohm Min.
Dielectric Withstanding Voltage:100 VAC/Minute

Mechanical
Operating Temperature:-55°C TO +85°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.
