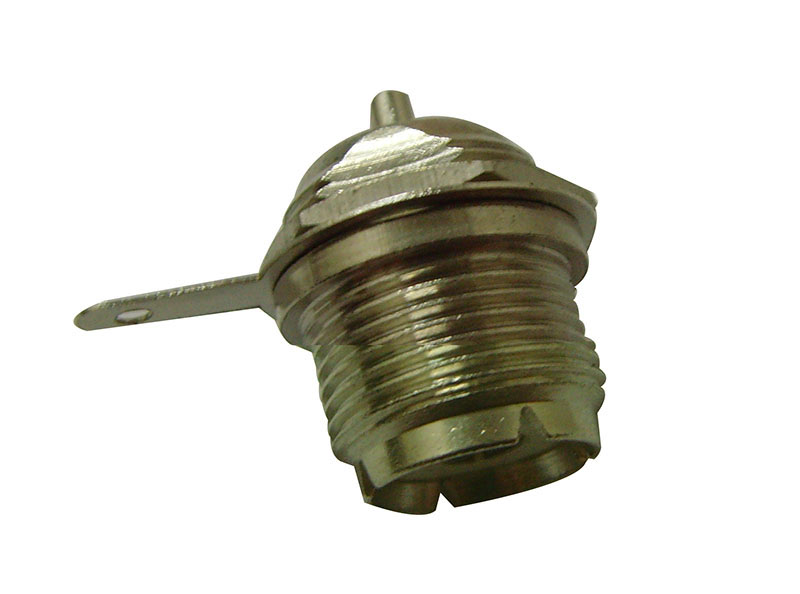

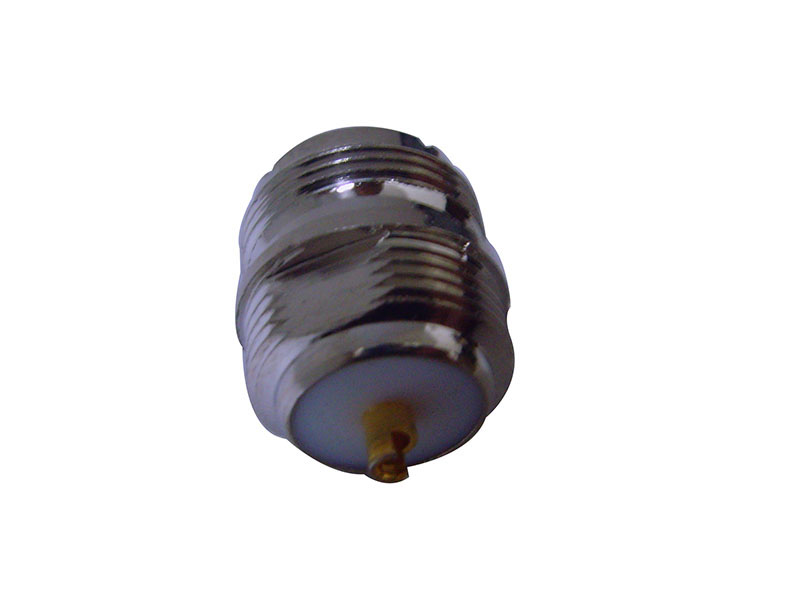

UHF Connector

  • Model: KLS1-UHF003
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

1- Center Contact:Phosphor Bronze, Gold plated
2-Body-diecast: Brass,Ni plated
3-Insulation: PTFE
4-Electrical
Impedance: 50 Ω
Frequency Range:0-300MHz
Voltage Rating: 400 volts
Withstand Voltage:2000V
V.S.W.R:<1.4
Insulation resistance: 5000 MΩ Min.
5-Mechanical
Mating: 5/8-24 threaded coupling
6-Durability(mating) 500 cycles Max.
7-Temp.range -40°C~85°C
