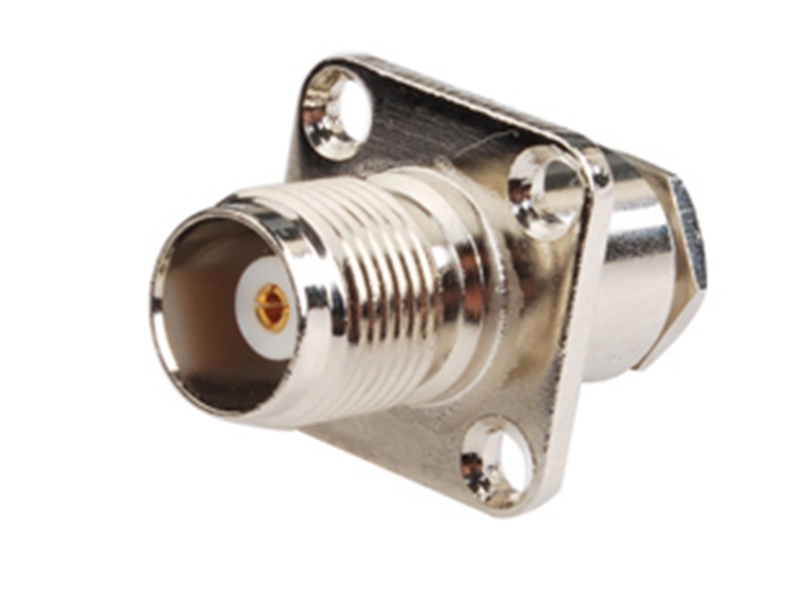

TNC Connector

  • Model: KLS1-TNC036
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

1- Center Contact: Brass,Gold-plated
2- Body-diecast: Brass,Nickel-plated
3- Insulation: PTFE
4- Electrical
Impedance: 50 Ω
Frequency Range:0~11 GHz Max.
Voltage Rating: 500 volts
Withstand Voltage:1500V
Insulation Resistance:5000 MΩ
V.S.W.R:<1.22
Contact resistance:
Centre contact: 1.5 mΩ Max.
Outer contact: 0.2 mΩ Max.
5- Mechanical
Mating: 7/16 threaded coupling
6- Durability(mating):500(cycles)
