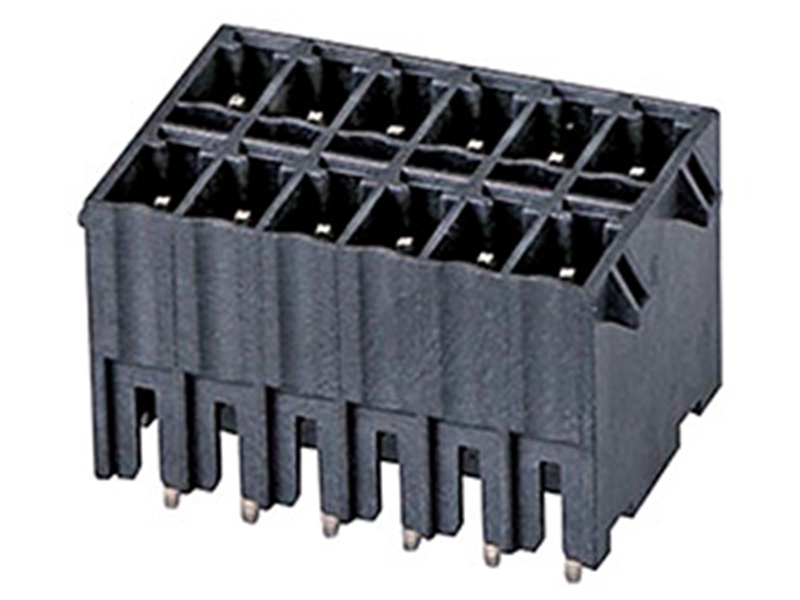

Through hole reflow 3.50mm
- Product Details
Material
Pin header: Brass , Tin plated
Housing: LCP , UL94V-0,Black
Electrical
Rated voltage: 300V
Rated current: 8A
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical
Temp. Range: -40 ° C ~ + 130 ° C
Soldering: 285° C±5° C for 10S
