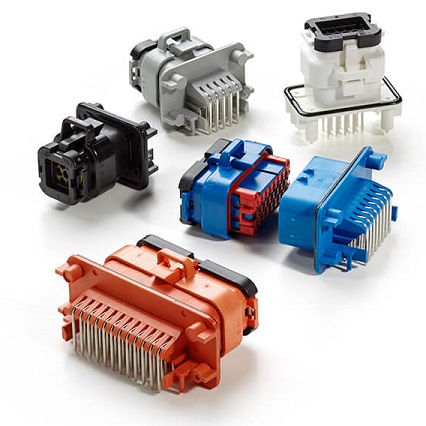

TE AMPSEAL automotive connectors series 8 14 25 35 positions
- Product Details

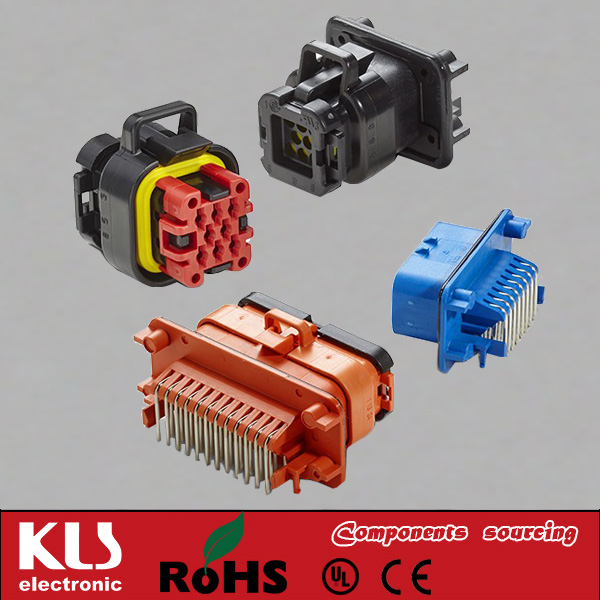

Automotive waterproof ECU connector 8 14 25 35 positios
automotive connectors provide rugged reliability, easy use and superior environmental sealing. They are available in cable plugs and pc board-mounting headers that are designed to stand up to high-temperature underhood applications. The pre-assembled receptacle connector features built-in contact sealing to eliminate individual wire-sealing grommets, while an integral interfacial seal protects mated connectors.
Order Information
KLS13-CA004-XX-S-B

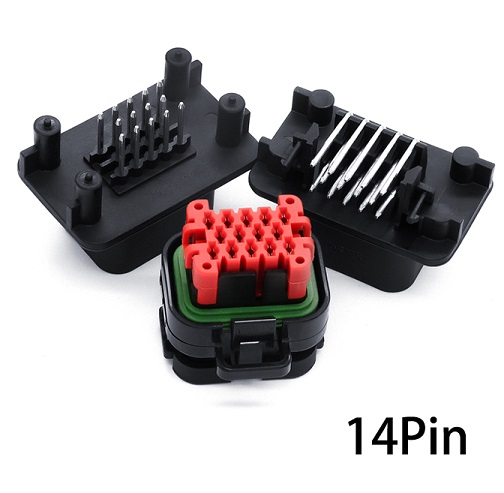

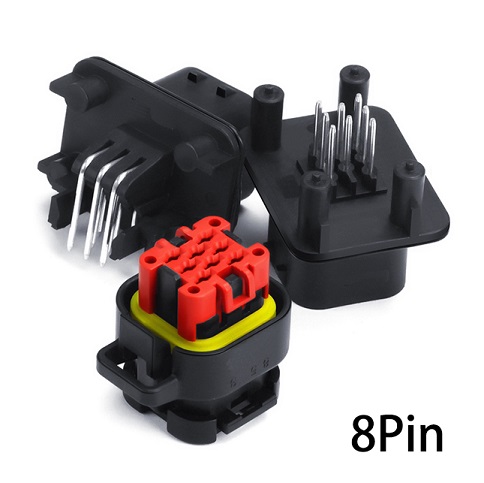

XX-8 14 25 35 positions
S-Straight Pin R-Right Angle Pin H-Housing T-Terminal
B-Black N-Natural G-Gray L-Blue
Accepts contact size 1.3 mm (up to 17 amps gold, up to 8 amps tin)
16-20 AWG (1.25-0.50 mm2)
8, 14, 23, and 35 cavity arrangements
PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Integrated wedgelock confirms contact alignment and retention
Available accessories: Wire relief
| 776286-1 | 776286-2 | 1-776280-1 (Gold) & 776280-1 (Tin) | 1-776280-2 (Gold) & 776280-2 (Tin) |
 |
 |
 |
 |
| 776279-1 | 776279-2 | 1-776275-1 | 776276-2 |
 |
 |
 |
 |
| 776273-1 | 776273-2 | 776273-4 | 776273-5 |
 |
 |
 |
 |
| 1-776267-1 | 1-776267-2 | 776267-4 | 776267-5 |
 |
 |
 |
 |
| 776266-1 | 1-776266-2 | 1-776266-4 | 776266-5 |
 |
 |
 |
 |
| 776262-1 | 1-776262-2 | 1-776262-4 | 776262-5 |
 |
 |
 |
 |
| 770680-1 | 770680-2 | 770680-4 | 770680-5 |
 |
 |
 |
 |
| 1-776228-1 | 776228-2 | 1-776228-4 | 1-776228-5 |
 |
 |
 |
 |
| 776200-1 | 1-776200-2 | 1-776200-4 | 776200-5 |
 |
 |
 |
 |
| 776164-1 | 776164-2 | 776164-4 | 776164-5 |
 |
 |
 |
 |
| 1-776163-1 | 776163-2 | 1-776163-4 | 1-776163-5 |
 |
 |
 |
 |
| 1-776180-1 | 1-776180-2 | 1-776180-4 | 1-776180-6 |
 |
 |
 |
 |
| 1-776231-1 | 1-776231-2 | 776231-4 | 776231-5 |
 |
 |
 |
 |
| 776230-1 | 776230-2 | 776230-4 | 776230-5 |
 |
 |
 |
 |
| 770520-1 | 770520-3 | 770854-1 | 770854-3 |
 |
 |
 |
 |
