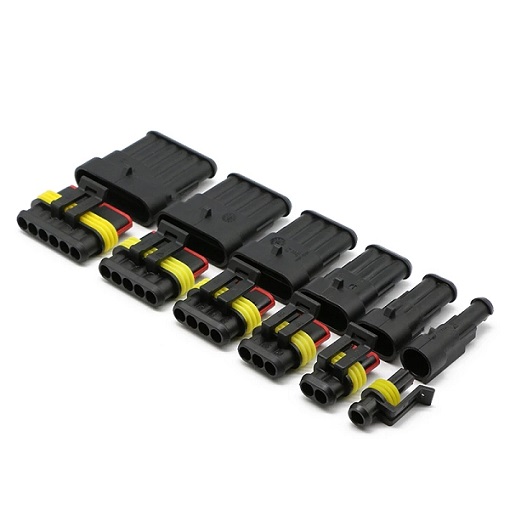

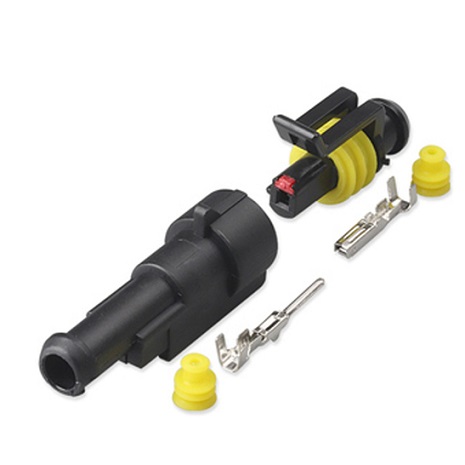

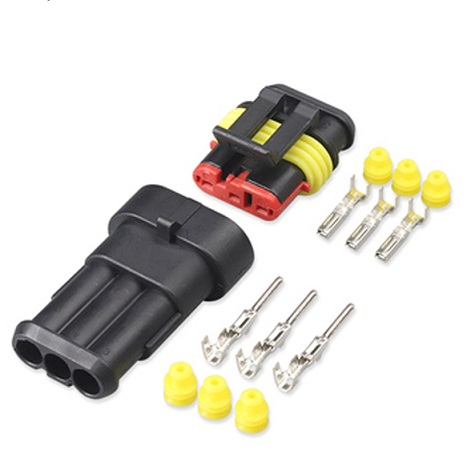

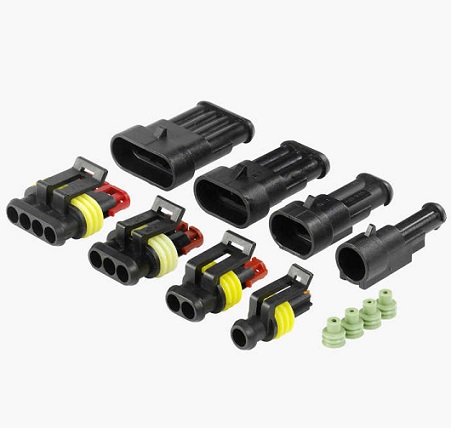

Superseal automotive connectors 1.5 series 1,2, 3, 4, 5, 6position
1.5 Series Connector family to meet the increasing requirements for reliability and waterproof-ability. Superseal IP67 connector range seals are field proven to provide water-tight connection under harsh conditions. 1.5 SERIES Connector exceed the requirements prescribed by IP 67 according IEC 60529 and DIN 40050-9 standards and has its application in the automotive, agriculture and industrial machinery. For sensor application the 1.5 Series Connector system is qualified as well.
Sealed, In-Line, 1 – 6 circuit connectors
Wire-to-Wire Connectors utilizing 1.5 mm terminals
Protective Rubber Boot available for 2, 3 & 5 circuits
Temperature Range: – 40°C to 125°C
Contact Finish: Tin plated
Current Rating: 14 Amps
Wire Size Range: 0.35 – 2.5 mm2

KLS13-CA043-1.5-XX-MH-B
CA043-1.5-Superseal 1.5 connectors
XX-Total pin number (No.of 2~6pin)
MH-Cap housing FH-Plug housing MT-Tab contact FT-Receptacle contact S-Seals silicon rubber
B-Black

KLS13-CA043.pdf
