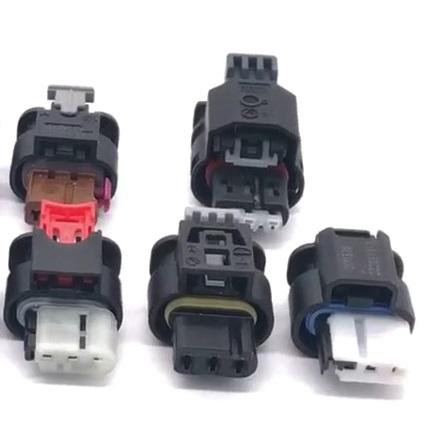

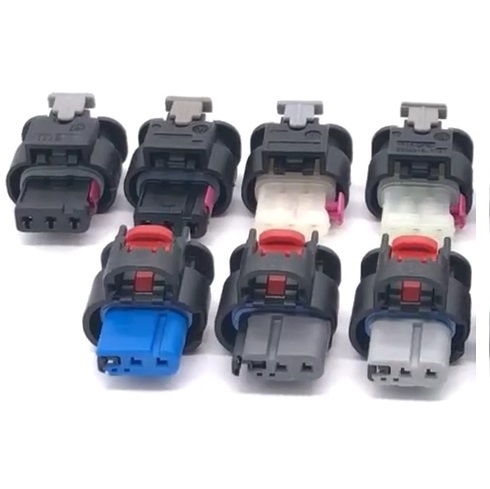

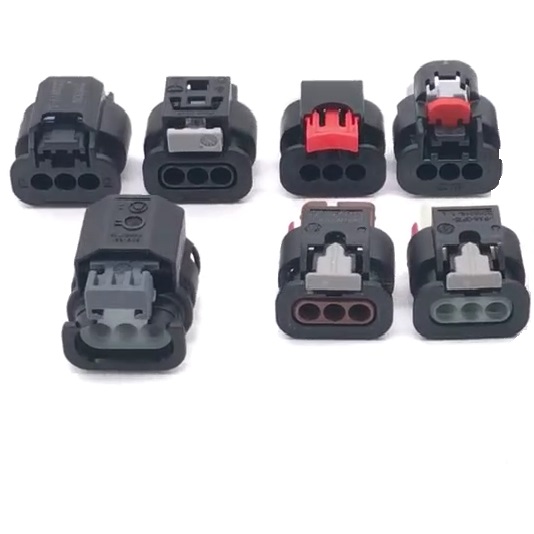

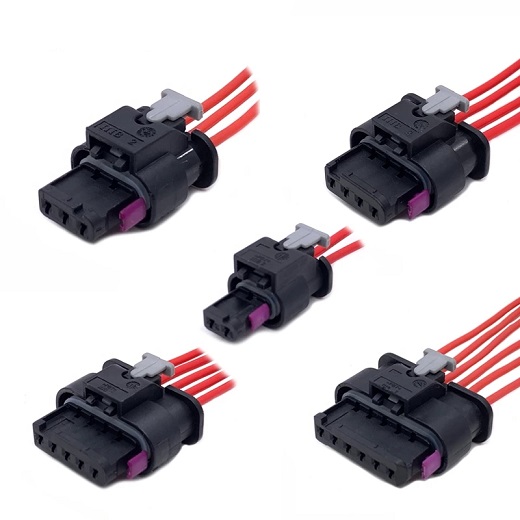

MCON 1.2 series connector system offers receptacle and tab housings
The new generation MCON connector system offers receptacle and tab housings with capability for waterproofing and resistance to conditions of extreme vibration. The system is designed for electronic and electrical applications in motor vehicles, where vibrations and mechanical stress, in the long term, can affect the quality on the contact system.

Sealed Female (only) Connectors for Device / Sensor Applications

Available configurations
2 & 3 circuits (side latch)
4, 5, 6 & 8 circuits (top latch)
Wire Size Range: 0.14–1.50 mm2. Current Rating: up to 14 Amps (at 20°C ambient temperature)

Temperature Range
–40°C to 140°C (tin-silver plated)
–40°C to 140°C (silver plated)
–40°C to 150°C (gold plated)

Mating Cycles
up to 20 cycles (tin-silver plated)
50 cycles (silver plated)
100 cycles (gold plated)

KLS13-CA032 &KLS13-CA033 & KLS13-CA034 & KLS13-CA035.pdf
