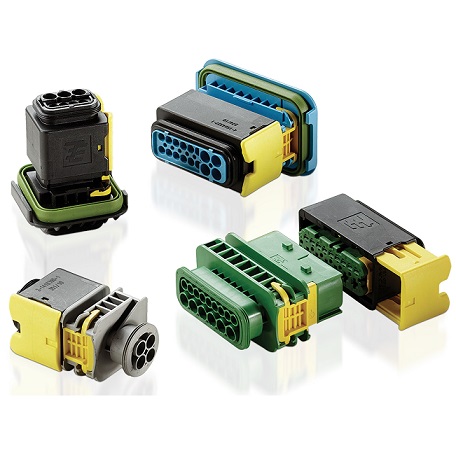

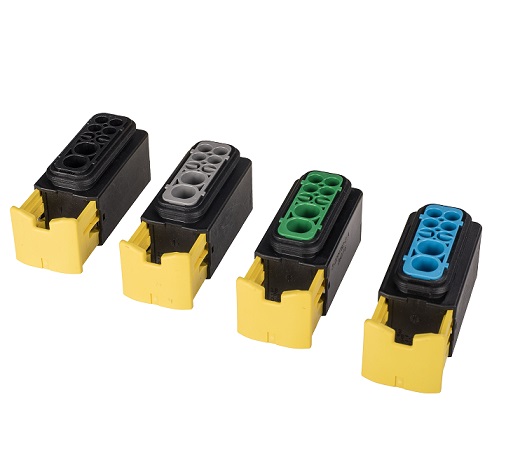

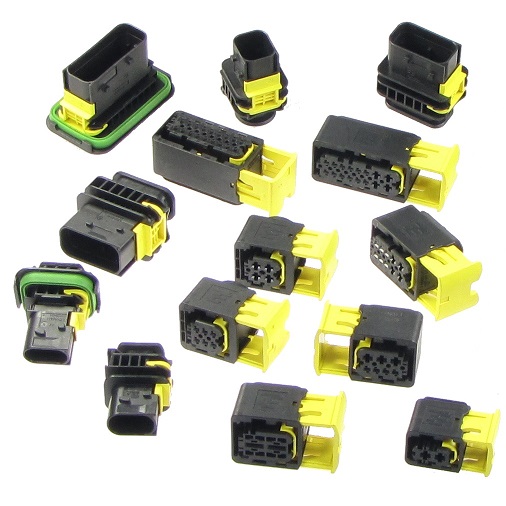

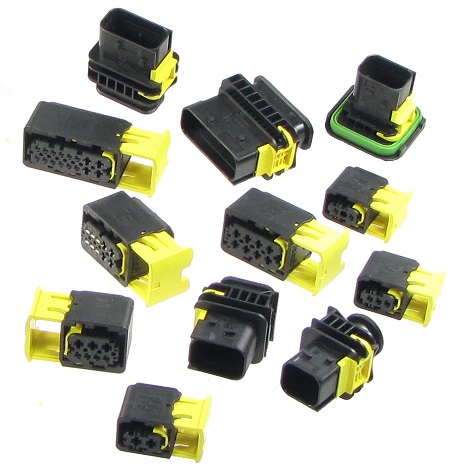

HDSCS Heavy Duty Sealed Connector Series
Our Heavy Duty Sealed Connector Series is designed to meet the rigorous demands of the commercial vehicle industry and off-road applications that require the highest standards of performance. Made from a rugged UL94 V-0-rated thermoplastic, Heavy Duty Sealed Connector Series have an integrated secondary lock with a poka-yoke feature that can be used for inline or flange-mounted applications in a wire-to-wire or wire-to-device configuration. Rated to IP67 and IP6K9K (when used with a backshell), Heavy Duty Sealed Connector Series are available in 5 housing sizes with 4 keying options. They are offered in arrangements ranging from 2 to 18 positions. Solutions for CAN bus architecture are also available. Accessories include backshells, protection caps, cavity plugs, and fixing slides.

Accepts contact sizes 6.3/4.8K (up to 40 amps), 2.8 (up to 40 amps), and 1.5K (up to 20 amps)
6.00-0.20 mm2
2, 3, 4, 6, 7, 8, 10, 12, 15, 16, and 18 cavity arrangements
In-line or flange mount
Rectangular, thermoplastic housing
Slide lock for mating
Integrated secondary lock confirms contact alignment and retention

Meet CAN Bus protocol specifications according to SAE J1939 standard

Available accessories: Backshells, fixing slides, protection caps, blind plugs and sealing plugs
