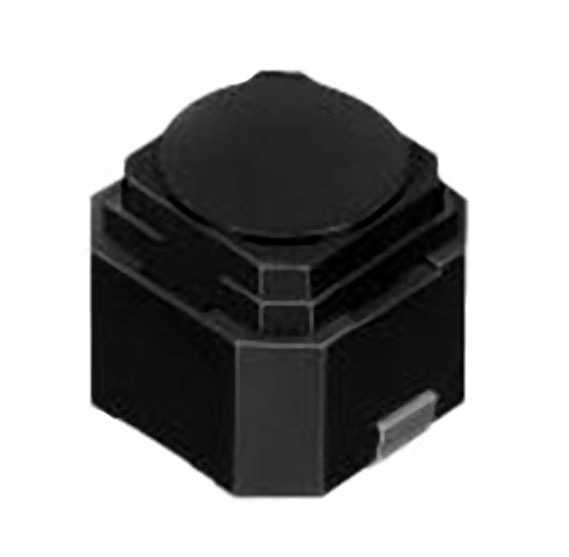

Tactile Switch
ELECTRICAL
1.Rating: 20mA 12V
2.Contact Resistance : 100mΩ Max
3.Insulation Resistance: 100MΩ Min
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100 000cycles
6.Environment temperature:-20ºC~+70ºC
7.Operating Force: 180/250(±30gf)
8.Seal temperature:260ºC~ 280ºC

KLS7-TS6650.pdf
