T Plug Connector Female Male

  • Model: KLS1-XT01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

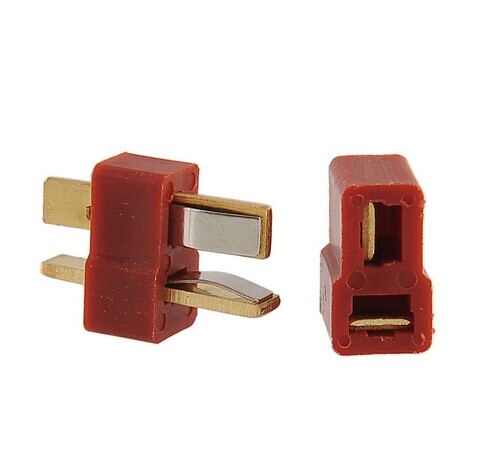

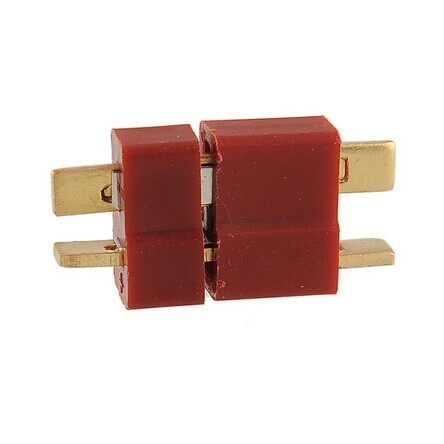

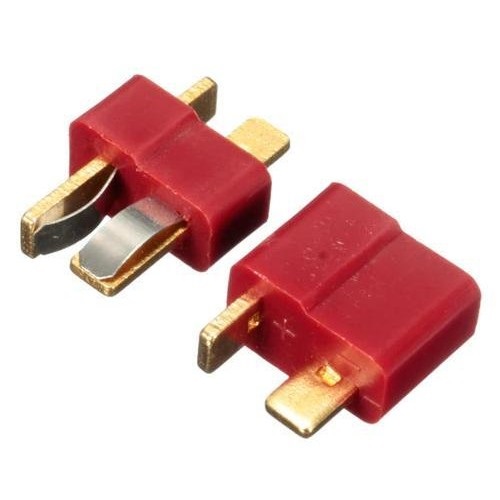

T Plug Deans Connectors Female & Male

Order information:
KLS1-XT01-M-6
Type-XT01
M-Male   F-Female
Color 6-Red  3-Black

Product model:
Male: KLS1-XT01-M
Female: KLS1-XT01-F
Application:Lithium battery / controller / charger
Product color: Blue Metal material: Brass Gold Plated
Instantaneous current: 40A Recommended wire gauge: 12 # / 14 # / 16#
Rated current: 20A Insulation material: PA66
Contact resistance: 1.0m Ω Operating temperature: – 20 ℃ to 120 ℃
Withstand voltage: DC 500V Plug times:1000 times
Flame retardant grade: UL94-V2
