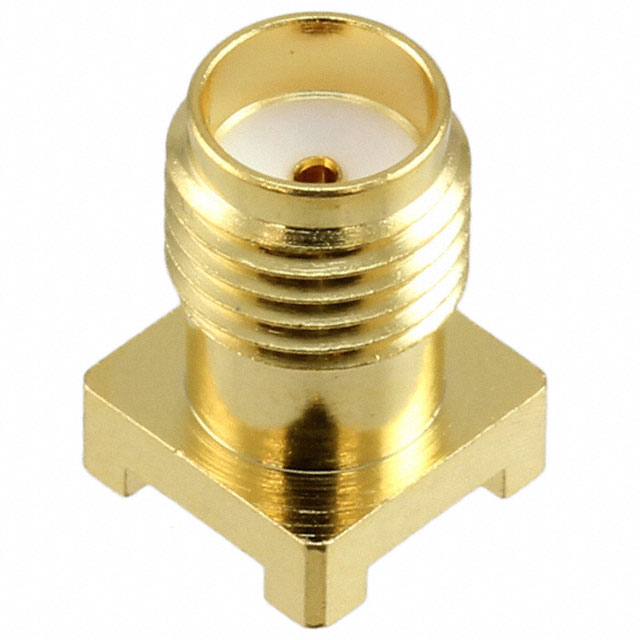

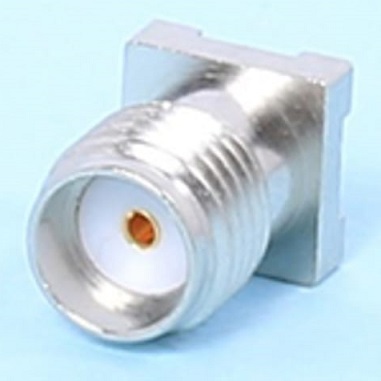

Surface Mount SMA Connector Jack Female

Connector Style
SMA

Connector Type
Jack, Female Socket

Contact Termination
Solder

Shield Termination
Solder

Impedance
50 Ohm

Mounting Type
Surface Mount

Cable Group
–

Fastening Type
Threaded

Frequency – Max
18GHz

Features
–

Housing Color
Gold

Ingress Protection
–

Body Material
Brass

Body Finish
Gold

Center Contact Material
Beryllium Copper

Center Contact Plating
Gold

Dielectric Material
Polytetrafluoroethylene (PTFE)

Voltage Rating
500V

Operating Temperature
-65°C ~ 165°C

KLS1-SMA036.pdf
