Subminiature Circular Connector

  • Model: KLS15-236B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

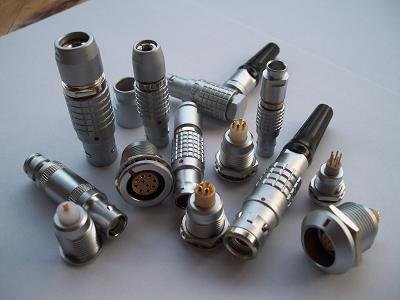

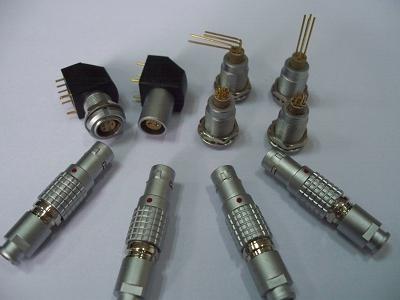

Circular Connector (Water proof  Ip≥67)

Products introduction:
KLS15-236B series small connectors has the features of small size,lightweight,nice appearance, similar with lemo series connectors,push-pull self-latching connecting system,mated simply and reliability,suitable for high-density.They are widely used for connection between sensors,electrical instruments and equipments.
ORDER INFORMATION:
KLS15-236B-M9-2M1
                    (1) (2)(3)
(1) M9:   M9 type
(2) 2:      2 pins (2,3,4,5,6,7,8,10pins)
(3) M1:   F1-Plug   M1-Socket
Electrical Characteristics:
Working temperature: -55°C  ~ +105°C
Relative humidity: 95± 3%  at 40°C± 2°C
Atmospheric pressure: 1KPa
Vibration: 10-2000HZ,150m/s2
Collide : 500m/s2
Permanent acceleration: 500m/s2
Endurance:1000 cycles

LEMO type:EGG.00.304;fgg.00.304;egg.1b.307;EGG.0B.302;egg.0b.304;EGG.0B.305;EGG.1B.305;egg.0b.307;egg.1b.304;egg.1b.310;EGG.2B.312;EGG.2B.318;egg.2b.319;EGG.3B.318;FGG.0B.302;fgg.0b.303;fgg.0b.304;fgg.0b.305;fgg.1b.304;fgg.1b.305;fgg.1b.306;fgg.1b.307;
fgg.1b.308;fgg.1b.310;FGG.2B.312;fgg.2b.316;fgg.2b.319;EGG.2B.314;
FFA.1S.304;FFA.1S.305;FFA.1S.306;FFA.1S.303;egg.0k.302;egg.0k.303;
EGG.0K.304;EGG.2K.304;EGG.2K.306;EGG.2K.308;EGG.2K.310;EGG.2K.312;EGG.2K.314;EGG.2K.316;EGG.2K.319;fgg.0k.302;fgg.0k.303;FGG.0K.304;
FGG.0K.305;FGG.2K.304;FGG.2K.306;FGG.2K.308;FGG.2K.310;FGG.2K.312;FGG.2K.314;FGG.2K.316;FGG.2K.319
