KLS7-SMS-103-C2T         ON-OFF-ON         3P

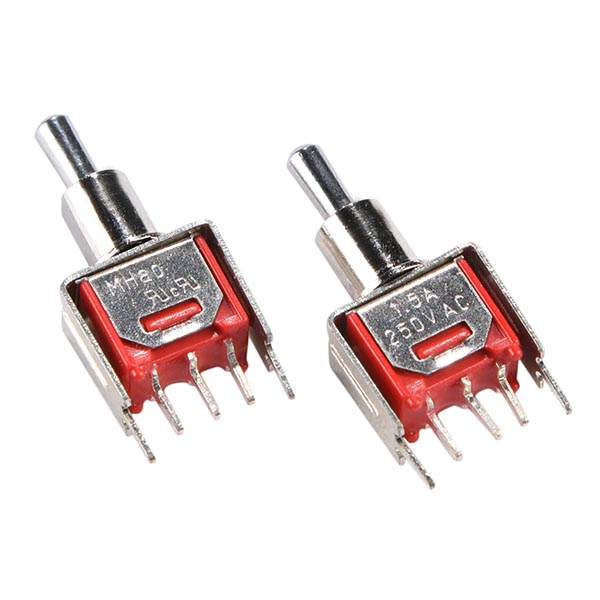

Sub-miniature Toggle switch
SPECIFICATIONS
Rating: 3A 125VAC; 1.5A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1000V AC 1 Minute
Operating Temperature:-25ºC +65ºC
Electrical Life :10,000 cycles
