KLS7-SRLS-102-A4         ON-ON                 3P
KLS7-SRLS-103-A4         ON-OFF-ON         3P

KLS7-SRLS-202-A4         ON-ON                 6P
KLS7-SRLS-203-A4         ON-OFF-ON         6P

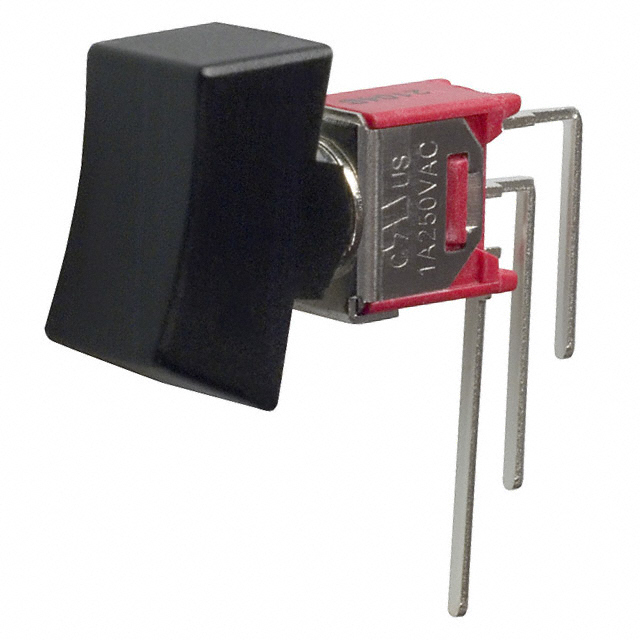

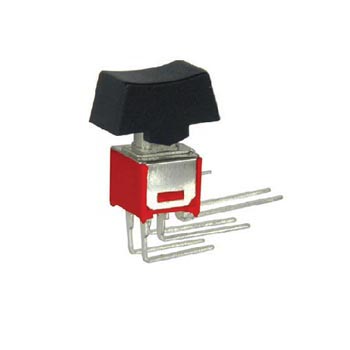

Sub-miniature Rocker Toggle Switch
SPECIFICATIONS
Rating: 3A 125VAC; 1.5A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1000V AC 1 Minute
Operating Temperature:-25ºC +65ºC
Electrical Life :20,000 cycles

KLS7-SRLS-102-A4.pdf
