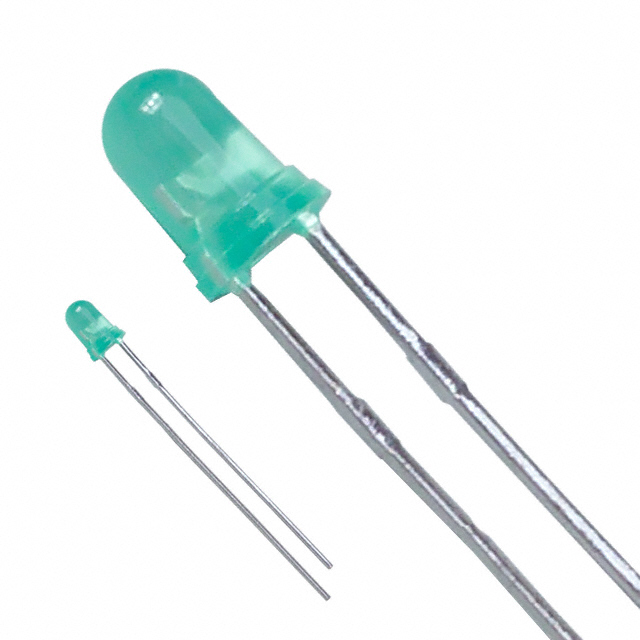

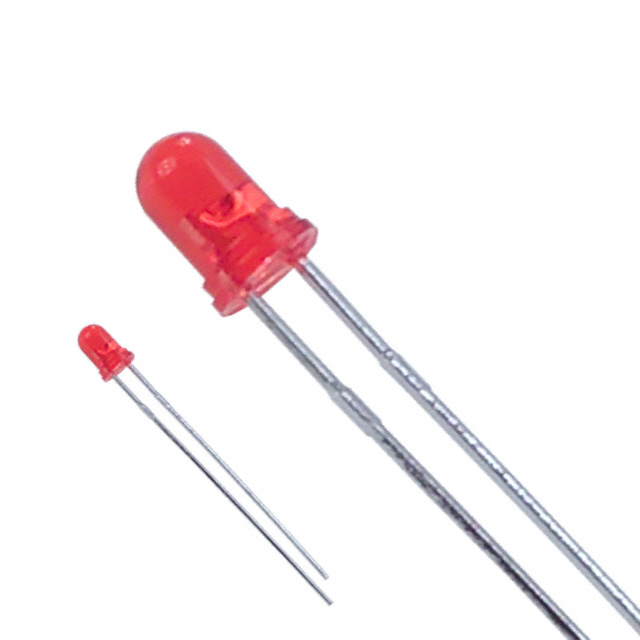

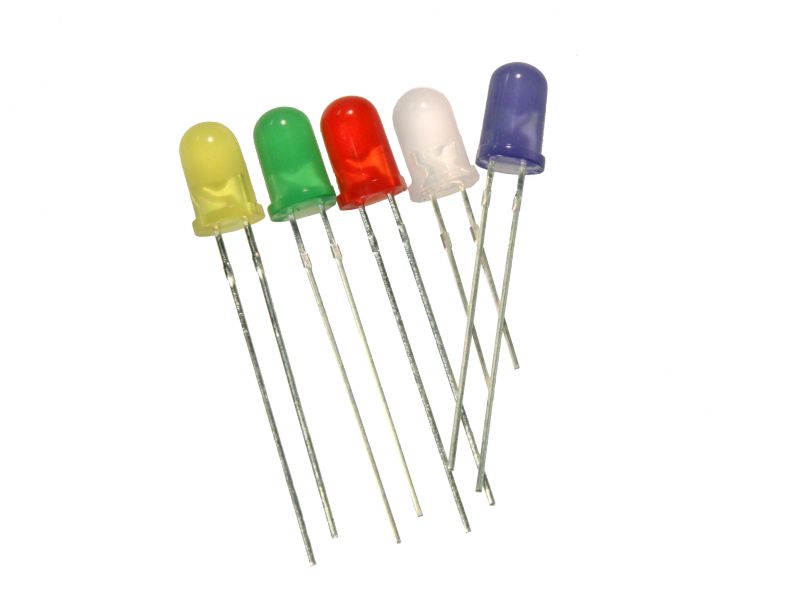

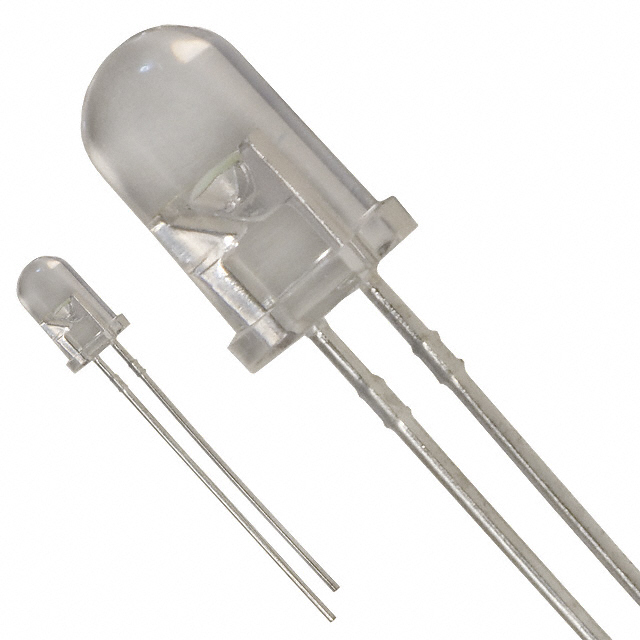

Standard LED 3mm & Standard LED 5mm 8mm 10mm

  • Model: KLS9-L-3014/KLS9-L-5012/KLS9-L-5013/

   KLS9-L-8003/KLS9-L-10003

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Standard LED 3mm & Standard LED 5mm 8mm 10mm

Feature:
1.Small flange without stand-off
2.Long life-solid state reliability
3.Long lead length (pitch 2.54mm)
4.Versatile mounting on p.c. board panel
Description:
1.The shape of this series is round
2.General application is for indication,illumination,etc.
3.These LED lamps are available with a choice of defferent colors,light intensities,epoxy colors,etc.

Package Part No.
 Chip Lens
Appearance		 Absolute Maximun
Ratings		 Electro-optical
Data(At 20mA)		 Viewing
Angle
2θ1/2
(deg)		 PDF
Material/Emitting
Color		 Peak
Wave
Length
λP
(nm)		 △λ
(nm)		 Pd
(mw)		 If
(mA)		 Peak
(mA)		 Vf(V) Iv
(mcd)
Typ Max Typ
T-1 Standard 1.0” Lead Φ3 KLS9-L-3004HD GaP/GaP Red 700 Red diffused 90 40 15 50 2.25 2.60 3.0 60 page66
T-1 Standard 1.0” Lead Φ3 KLS9-L-3004GD GaP/GaP Green 568 Green diffused 30 80 30 150 2.20 2.50 15 60 page66
T-1 Standard 0.5” Lead Φ3 KLS9-L-3012YD GaAsP/GaP Yellow 585 Yellow diffused 35 80 30 150 2.10 2.50 12 80 page66
T-1 Standard 1.0” Lead Φ3 KLS9-L-3014ED GaAsP/GaP Orange 635 Orange diffused 35 80 30 150 2.10 2.50 20 60 page67
T-1 Standard 1.0” Lead Φ3 KLS9-L-3014GT GaP/GaP Green 568 Green Trans 30 80 30 150 2.20 2.50 40 30 page67
T-1 3/4 Standard 1.0” Lead Φ5 KLS9-L-5012HD GaP/GaP Red 700 Red diffused 90 40 15 50 2.25 2.60 4.0 80 page67
T-1 3/4 Standard 1.0” Lead Φ5 KLS9-L-5013ED GaAsP/GaP Orange 635 Red diffused 35 80 30 150 2.10 2.50 30 60 page68
T-1 3/4 Standard 1.0” Lead Φ5 KLS9-L-5013YT GaAsP/GaP Yellow 585 Yellow trans 35 80 30 150 2.10 2.50 50 30 page68
Round 1.0” Lead Φ8 KLS9-L-8003GD GaP/GaP Green 568 Green diffused 30 80 30 150 2.20 2.50 30 60 page68
Round 1.0” Lead Φ8 KLS9-L-8003ED-E GaAsP/GaP Orange 635 Red diffused 35 80 30 150 2.10 2.50 40 60 page68
Round 1.0” Lead Φ10 KLS9-L-10003GD GaP/GaP Green 568 Green diffused 30 80 30 150 2.20 2.50 30 60 page69
2.0*5.0*7.0mm 1.0” Lead Rectangular KLS9-L-2513HD GaP/GaP Red 700 Red diffused 90 40 15 50 2.25 2.60 2.0 120 page69
2.0*5.0*7.0mm 1.0” Lead Rectangular KLS9-L-2523YD    GaAsP/GaP Yellow 585 Yellow diffused 35 80 30 150 2.10 2.50 8 120 page69
