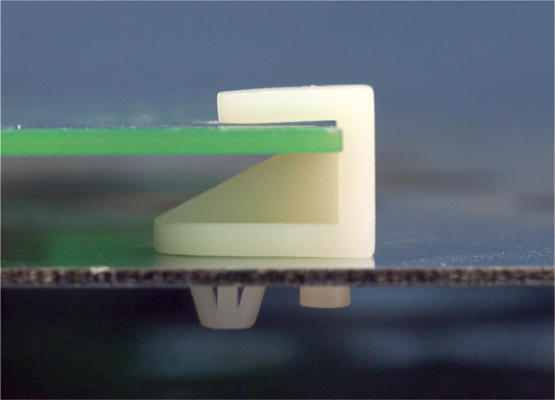

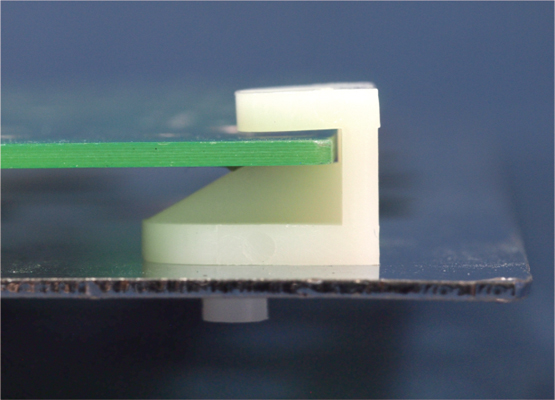

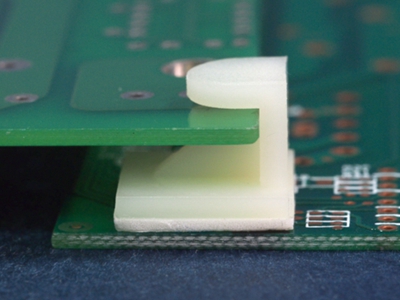

Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

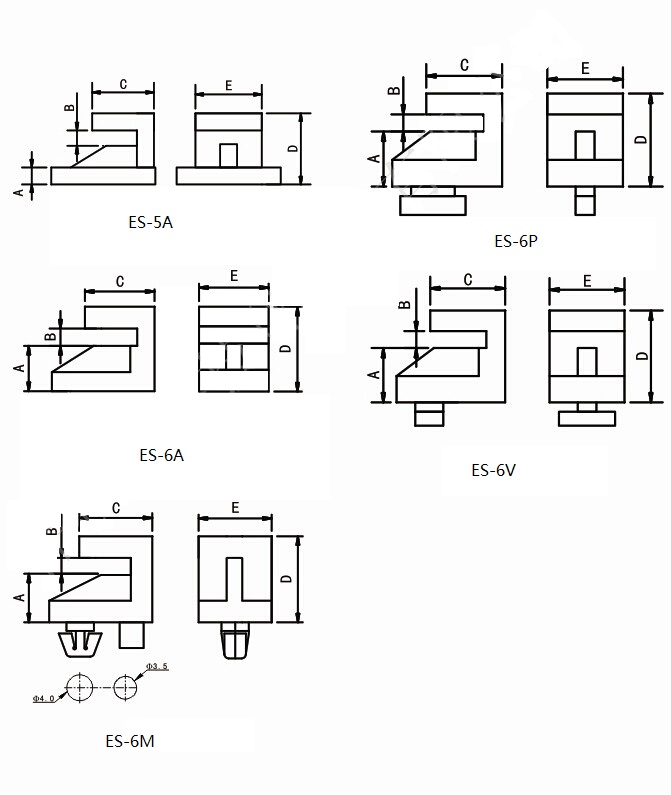

| P/N | A | UPPER | Color | Packing |
| PCB THICKNESS | ||||
| mm | mm | pcs | ||
| L-KLS8-0204-ES-5A | 5.4 | 2.2 | Natural | 1000 |
| L-KLS8-0204-ES-6A | 6.0 | 1.9 | Natural | 1000 |
| L-KLS8-0204-ES-6M | 5.8 | 2.2 | Natural | 1000 |
| L-KLS8-0204-ES-6P | 6.0 | 1.9 | Natural | 1000 |
| L-KLS8-0204-ES-6V | 6.0 | 1.9 | Natural | 1000 |
