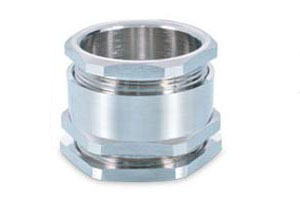

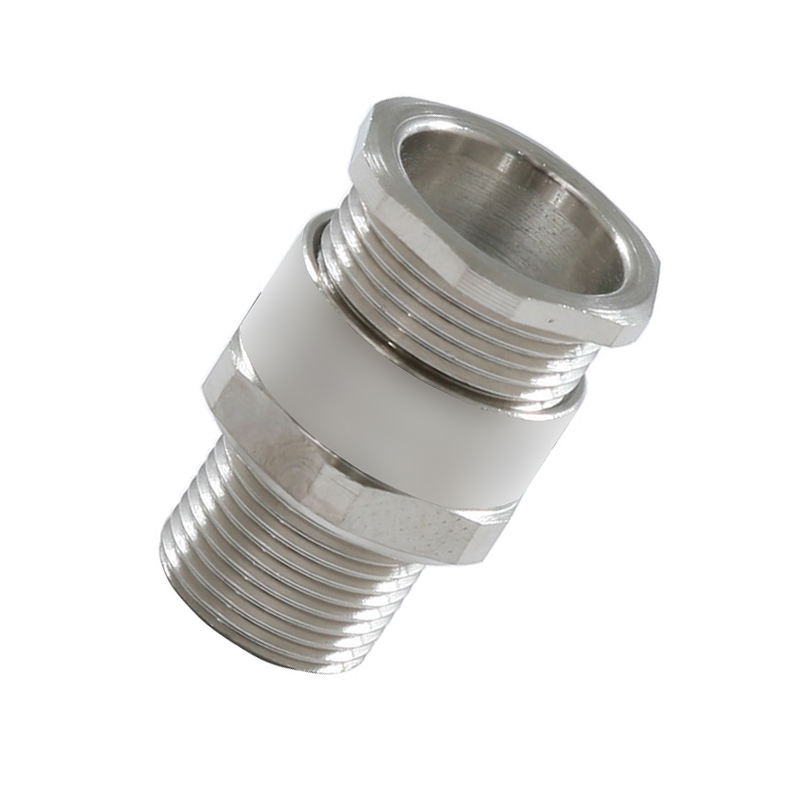

SP Type Metallic Cable Glands
- Product Details
Material: Brass with nickel plated
Claw: Nylon plastic(PA),UL94-V2
Sealing: NBR
O-Sealing ring: NBR
Protection Class: IP68 (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Range of temperature: -40℃~100℃
Oder Information
KLS8-0625-PG-7
0625: PG Type Metallic Cable Glands
PG-7: Item No.

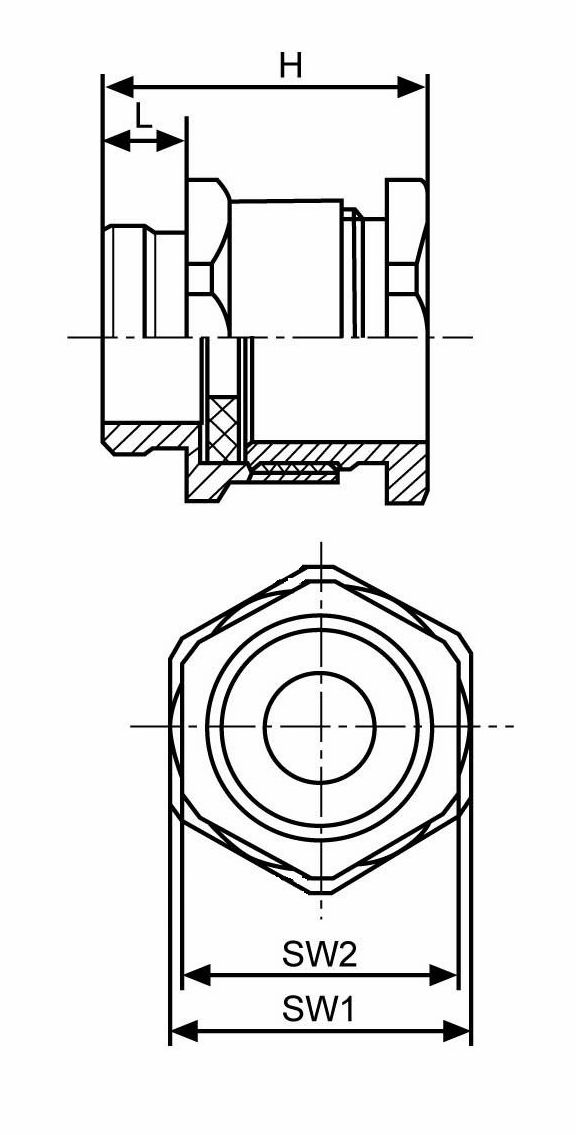

| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| PG7 | 6-8 | 12.5 | 12.5-12.8 | 6 | 15 | 13/14 |
| PG9 | 8-10 | 15.2 | 15.2-15.5 | 6 | 15 | 15/17 |
| PG11 | 10-12 | 18.6 | 18.6-18.9 | 6 | 17 | 18/20 |
| PG13.5 | 12-14 | 20.4 | 20.4-20.7 | 6.5 | 20 | 20/22 |
| PG16 | 14-16 | 22.5 | 22.5-22.8 | 6.5 | 22 | 22/24 |
| PG21 | 17-19 | 28.3 | 28.3-28.6 | 7 | 24 | 28/30 |
| PG29 | 26-28 | 37 | 37-37.3 | 8 | 26 | 37/40 |
| PG36 | 33-35 | 47 | 47-47.3 | 9 | 30 | 47/50 |
| PG42 | 39-41 | 54 | 54-54.3 | 10 | 34 | 54/57 |
| PG48 | 45-47 | 59.3 | 59.3-59.6 | 10 | 37 | 60/64 |
| M12x1.5 | 6-8 | 12 | 12-12.3 | 6 | 15 | 13/14 |
| M16x1.5 | 8-10 | 16 | 16-16.3 | 6 | 15 | 15/18 |
| M18x1.5 | 10-12 | 18 | 18-18.3 | 6 | 17 | 18/20 |
| M20x1.5 | 10-12 | 20 | 20-20.3 | 6.5 | 17 | 18/22 |
| M25x1.5 | 17-19 | 25 | 25-25.3 | 7 | 24 | 28/30 |
| M32x1.5 | 26-28 | 32 | 32-32.3 | 8 | 26 | 37/40 |
| M40x1.5 | 33-35 | 40 | 40-40.3 | 9 | 30 | 47/50 |
| M50x1.5 | 39-41 | 50 | 50-50.3 | 10 | 34 | 54/57 |
| M63x1.5 | 43-45 | 63 | 63-63.3 | 10 | 37 | 60/68 |
