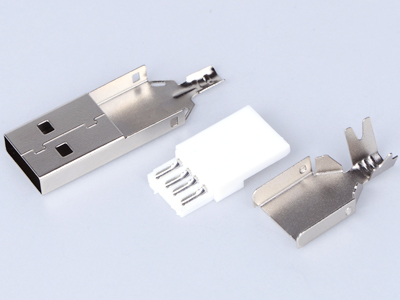

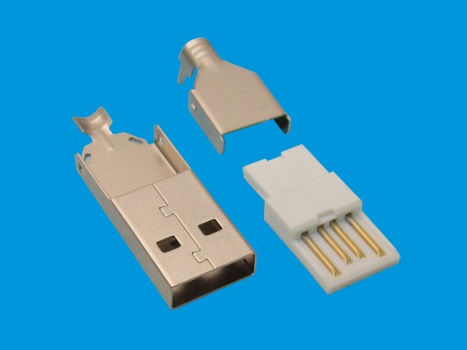

Solder A Male Plug USB Connector
- Product Details
Material：
Isulation:PBT,UL94V-0.
Contact:Brass (T=0.18mm).
Shell:SPCC (T=0.30mm).
Electrical:
Contact Current Rating:
1.8Amperes for contacts1&5,
0.5A for contacts 2 3&4.
Dielectric Withstanding Voltage:
AC 100V r.m.s.
Insulation Resistance:100MΩ Min.
Contact Resistance:30mΩ Max.
Connector Insertion Force:35N Max.
Connector Separation Force:8N Min.
Operating Temperature:-55°C TO +85°C.
