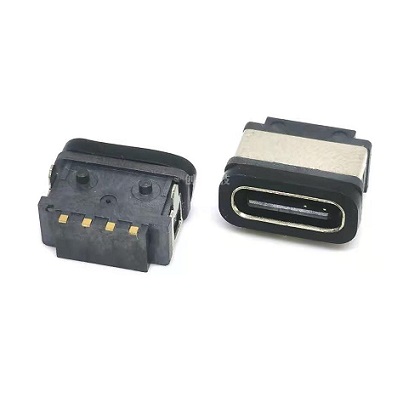

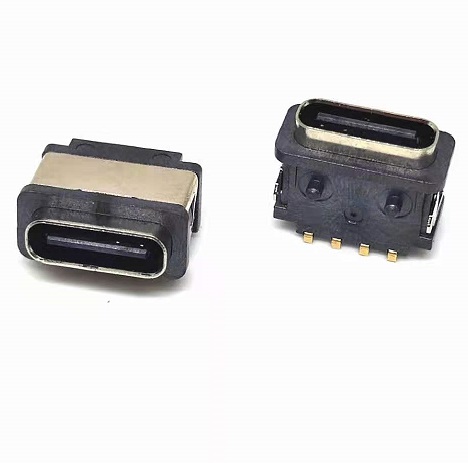

SMT USB Type-C 4P IPX7 Waterproof Connector

Material:
Housing: Nylon Plastic
Over Molding1: Nylon Plastic
Solder Plate: SUS304 Plated Solders Nickel

Electrical Characteristics:
Current Rating: 3.0A
Dielectric Withstanding Voltage: 100VAC
Temperature Range: -30%%DC~+ 85%%DC
Contact Resistance: 40mΩ Max
Insulator Resistance: 100MΩ Min
Initial Insertion Force: 5-20N;
Extaction Force: 8-20N
After Durability: 10000 Cycles,
Insertion Force: 5-20N ,Extaction Force:6-20N
Waterproof Grade: IPX7
