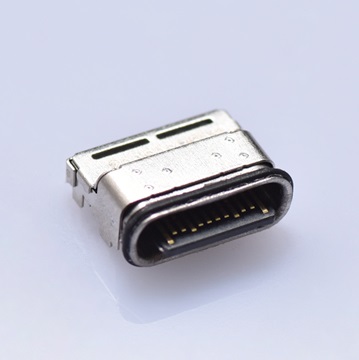

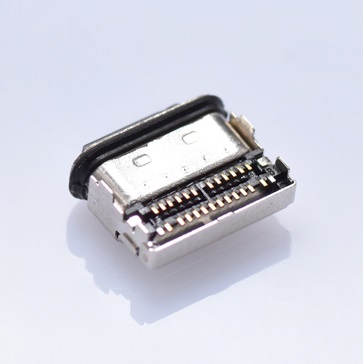

SMT USB Type-C 24P IPX8 Waterproof Connector

  • Model: KLS1-PUB-032
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

SMT USB Type-C 24P IPX8 Waterproof Connector

1.ELECTRICAL CHARACTERISTICS:
1.1 CURRENT RATING: 5A
1.2 CONTACT RATED VOLTAE: 30V AC
1.3 TEMPERATURE RANGE: -40°C ~ 85°C
1.4 CONTACT RESISTANCE: 40 MILLIONHM MAX.
1.5 DIELECTRIC WITHSTANDING VOLTAGE: 100 VAC r.m.s
1.6 INSULATION RESISTNACE: 100 MEGOHMS MIN.

2.MECHANICAL CHARACTERISTICS
2.1 INSERTION FORCE: 5~20N
2.2 EXTRACTION FORCE: Initial: 8~20N; Durability: 6~20N(10000cycles)
2.3 DURABILITY:10,000CYCLES

3.2. IR REFLOW:
THE PEAK TEMPERATURE ON THE BOARD SHALL
BE MAINTAINED FOR 10 SECONDS AT 260°C.
