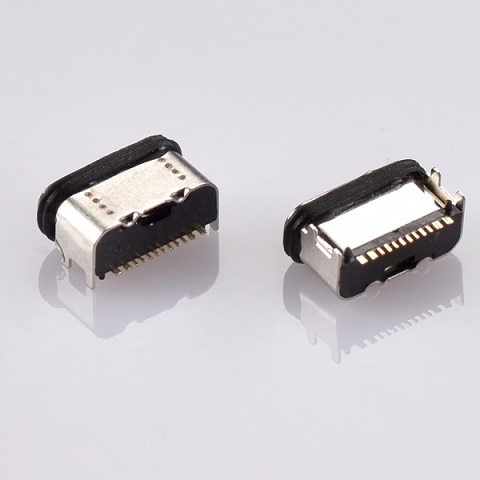

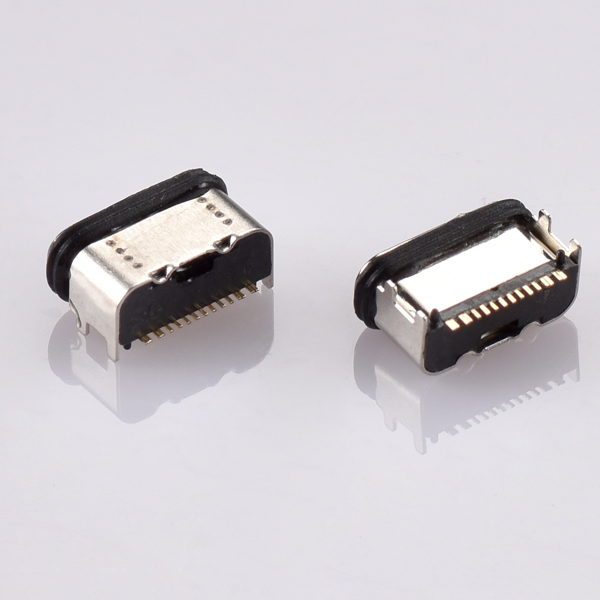

SMT USB Type-C 16P IPX7 Waterproof Connector ASSEMBLY TYPE

Material:
Housing:Nylon Plastic
Over Molding1:Nylon Plastic
Solder Plate:SUS304 Plated Solders Nickel

Electrical Characteristics:
Voltage/Current Rating: 4V/3.0A
Dielectric Withstanding Voltage: 100VAC
Temperature Range: -30%%DC~+ 85%%DC
Contact Resistance: 40mΩ Max
Insulator Resistance: 100MΩ Min
Initial Insertion Force: 5-20N;
Extaction Force: 8-20N
After Durability: 10000 Cycles,
Insertion Force: 5-20N ,Extaction Force:6-20N
Waterproof Grade: IP67

KLS1-PUB-003.pdf
