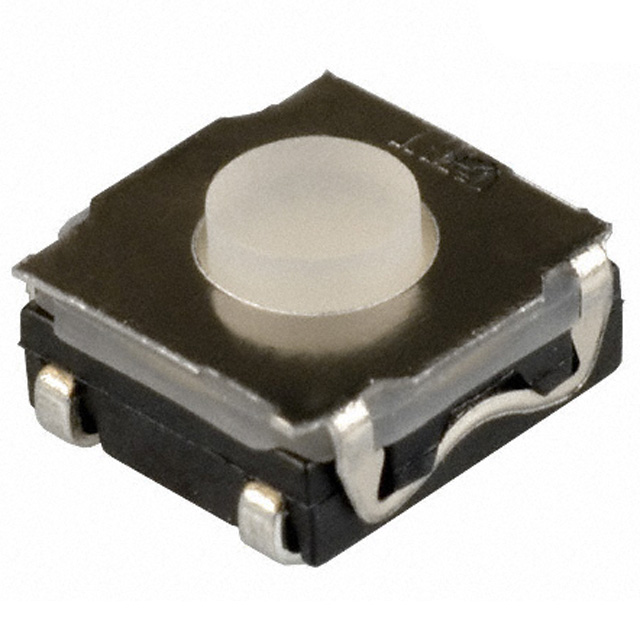

SMT Tactile Switch
ELECTRICAL
1.Rating: 50mA 12VDC
2.Contact Resistance : 50mΩ max(initial)
3.Insulation Resistance: 100MΩ(minDC 250V)
4.Dielectric Strength : AC250V(50/60Hz for 1minute)
5.Electrically Life: 100000cycles
6.Environment temperature:-20ºC~+70ºC
7.Operating Force: 180/250(±30gf)
8.Seal temperature:260ºC~ 280ºC

KLS7-TS6616.pdf
