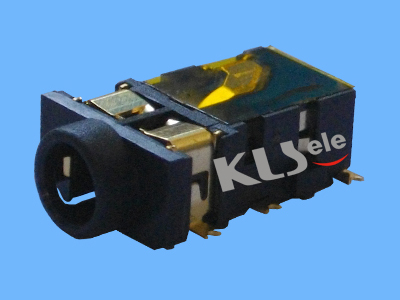

SMT 3.5mm Stereo Jack

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Terminal 1: Copper Alloy
Terminal 2: Copper Alloy
Terminal 3: Copper Alloy
Terminal 4: Copper Alloy
Terminal 5: Copper Alloy
Terminal 6: Copper Alloy
Housing : PA6T
Tape : Polymide

KLS1-SPJ3.5-006.pdf
