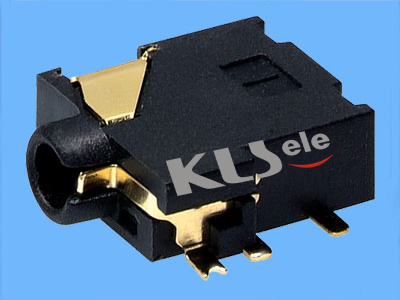

SMT 2.5mm Stereo Jack
- Product Details
SMT 2.5mm Stereo Jack
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30 C ~ 70 C o o
2.5mm SMD Stereo Jack
Schematic :See Annex
Material:
Terminal 1 : Copper Alloy
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 4 : Copper Alloy
Terminal10 : Brass
Terminal11 : Brass
Housing : PA6T
Cover : PA6T
