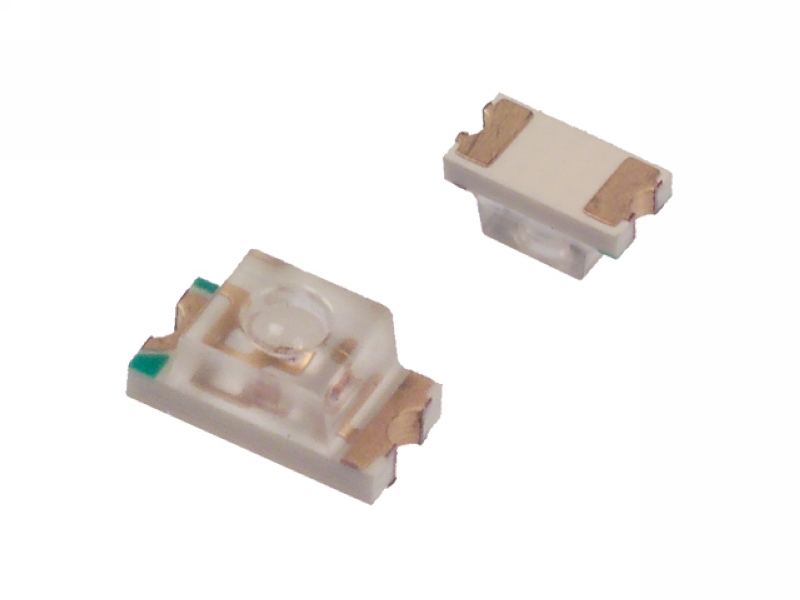

SMD TOP Lighting LED 1206

Model: KLS9-T1206
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details

Part.No.	Package	Size	Chip Emitted Color	Chip Peak wave Length	Lens Appearance	Absolute Max. Ratings				Electro-optical Data(at 20mA)			Viewing angle 2θ1/2
				Chip Peak wave Length		Absolute Max. Ratings				Vf		Iv
				λp		Δλ	Pd	If	Peak	type	max	type
		mm		nm		nm	mw	mA	mA	V	V	mcd	deg
KLS9-T1206URC	1206	3.2×1.5	Ultra Bright Red	624	Water Clear	20	70	30	70	2.2	2.6	180	120
KLS9-T1206UEC	1206	3.2×1.5	Ultra Bright Orange	601	Water Clear	20	70	30	70	2.2	2.6	180	120
KLS9-T1206UBC	1206	3.2×1.5	Ultra Bright Blue	468	Water Clear	20	90	30	100	3.2	3.6	60	120
KLS9-T1206UGC	1206	3.2×1.5	Ultra Bright Green	520	Water Clear	20	90	30	100	3.2	3.6	800	120
KLS9-T1206UYC	1206	3.2×1.5	Ultra Bright Yellow	588	Water Clear	20	70	30	70	2.2	2.6	180	120
KLS9-T1206YGC	1206	3.2×1.5	Ultra Bright Yellow Green	570	Water Clear	20	70	30	70	2.2	2.6	60	120
KLS9-T1206CW	1206	3.2×1.5	Ultra Bright White	0.29	Yellow Diffuse	~	90	30	100	3.2	3.6	800	120
KLS9-T1206WW	1206	3.2×1.5	Ultra Bright Warm White	0.3	Yellow Diffuse	~	90	30	100	3.2	3.6	500	120
